Coupling
Servo & Precision Coupling
Small, low-inertia aluminium couplings with clamp hubs for servo and stepper motors, encoders and ball screws. Zero-backlash disc, bellows and slit designs.
Specifications
- Torque range
- 0.8 – 520 N·m
- Bore range
- 3 – 68 mm
- Hubs
- Aluminium alloy, clamp screw fixing
- Element
- Stainless disc, stainless bellows, helical slit or PU spider
Description

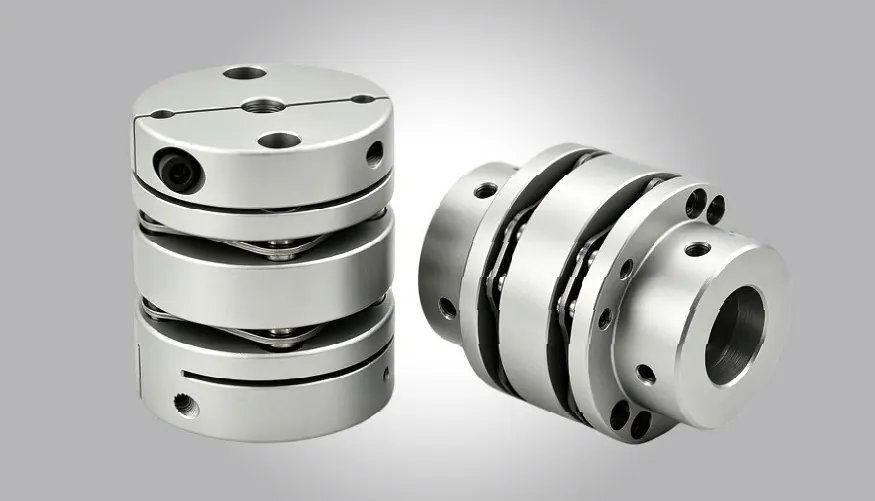

Motion-control drives need couplings that do not lose position. These aluminium couplings fix with clamp screws and transmit torque through a stainless disc, a stainless bellows, a helical slit or a polyurethane spider. Disc and bellows types give zero backlash and high torsional stiffness for frequent forward and reverse motion.
Applications
- Servo and stepper motors
- Ball screws and linear stages
- Encoders
- CNC machine tools
- Robotics and automation
- Packaging machines
Series in this range
5 series · dimension tables on request
-
XL-A
Aluminium jaw coupling
Aluminium clamp hubs with PU spider, XL-14 – XL-120.
- 1.1 – 520 N·m
- Bores 3 – 68 mm
-

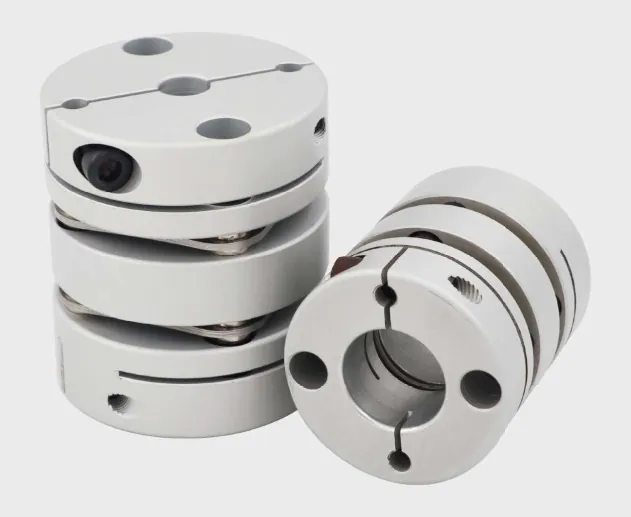

SDM
SDM double-disc coupling
Two 304 stainless discs, 12 – 82 mm outside diameter.
- Bores 3 – 42 mm
-

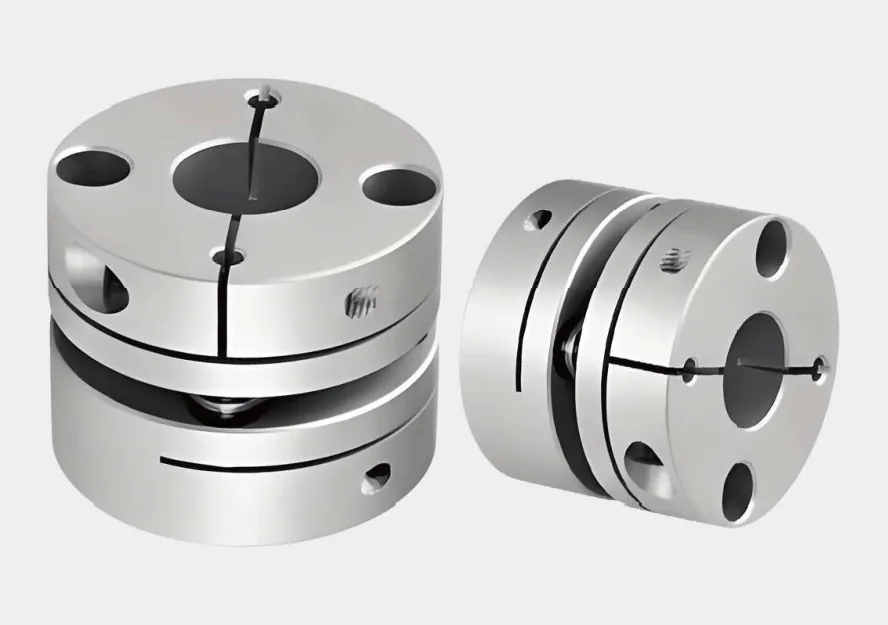

DDM
DDM single-disc coupling
One 304 stainless disc for compact, stiff drives, 12 – 82 mm OD.
- Bores 3 – 42 mm
-

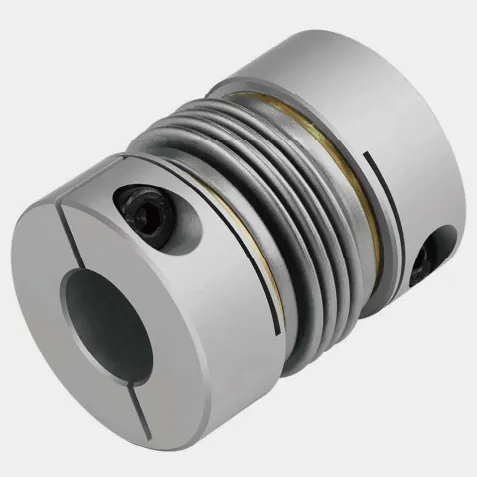

GRC
GRC bellows coupling
Stainless bellows between aluminium clamp hubs, GRC-16 – GRC-105.
- 0.8 – 200 N·m
- Bores 4 – 50 mm
-

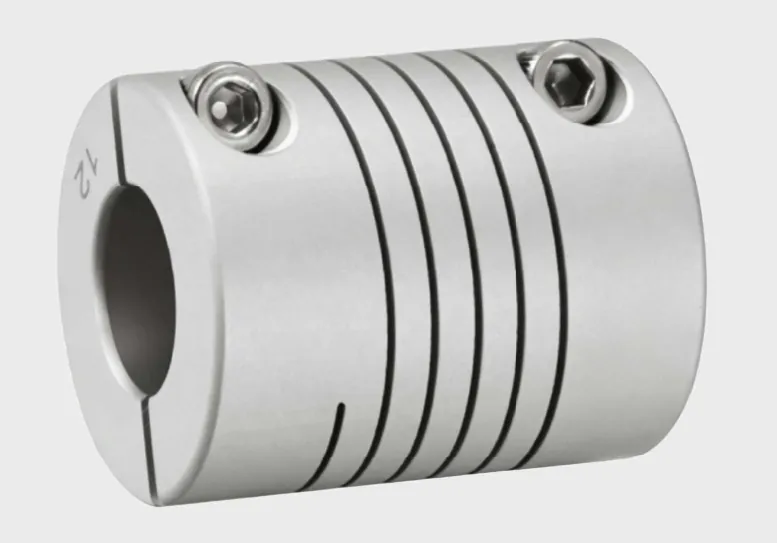

GC
GC slit coupling
One-piece helical slit coupling for encoders and light drives.
- 0.9 – 2 N·m
- Bores 4 – 12 mm
Servo & Precision Coupling: common questions
Where is Servo & Precision Coupling used?
Servo and stepper motors; Ball screws and linear stages; Encoders; CNC machine tools; Robotics and automation; Packaging machines.
What do you need to quote Servo & Precision Coupling?
Size or dimensions (or a drawing); Operating pressure and temperature; Medium and operating conditions; Quantity and delivery location.
Who supplies Servo & Precision Coupling in Indonesia?
PT Misuba Guna Indonesia supplies Servo & Precision Coupling to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Servo & Precision Coupling?
Send your operating conditions and quantity. Our sales team will check the details and quote.
