Stock Preparation

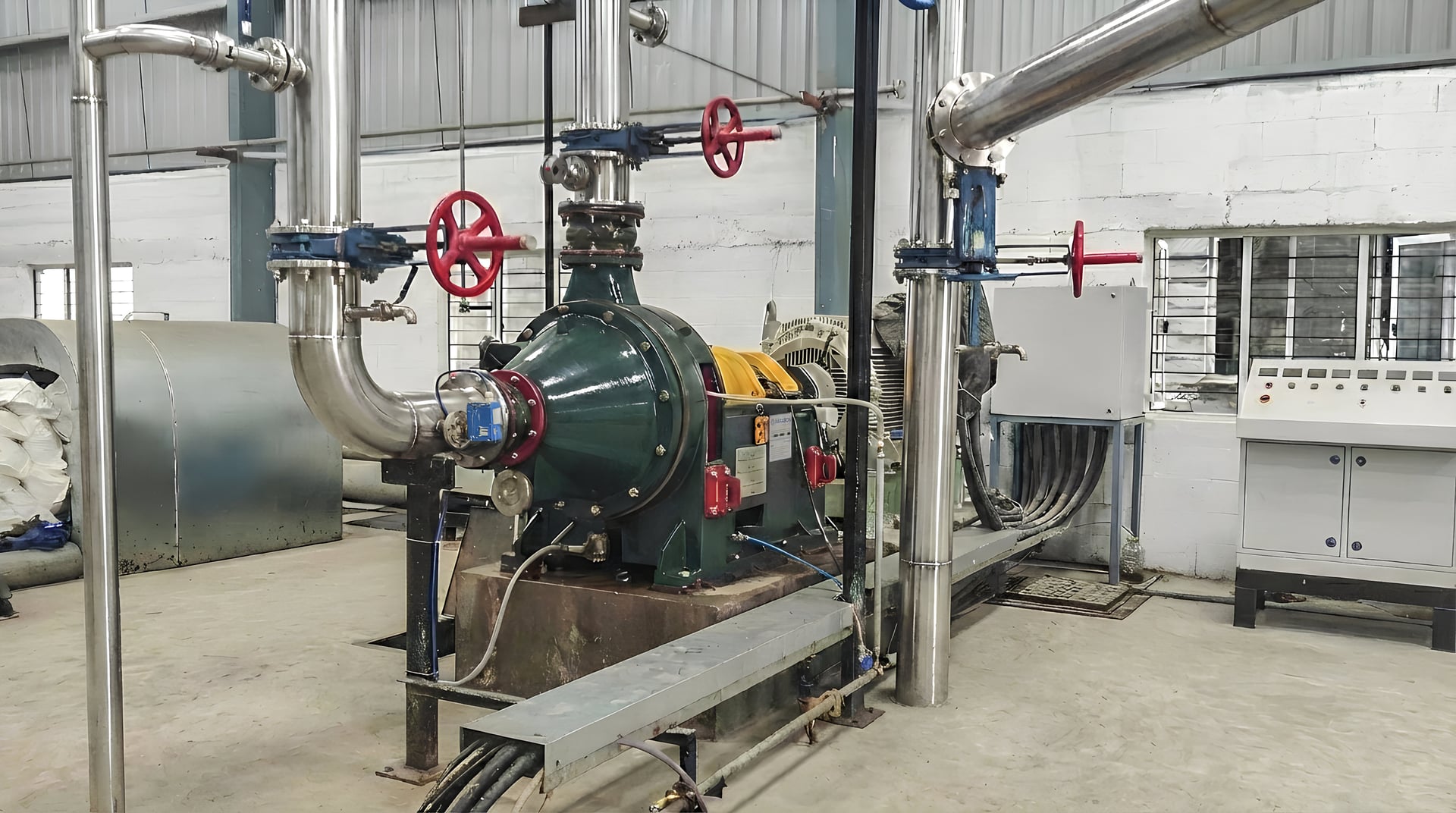

Double Disc Refiner
Twin disc, conical and cylindrical refiners for controlled fiber development, with precise gap control and options for every furnish.
Specifications
- Twin disc refiner
- 8–600 TPD, 37–3,000 kW
- Conical refiner
- 10–350 TPD, 30–600 kW, low intensity
- Cylindrical refiner
- 315–700 kW, several configurations
- Disc options
- milled, cast or welded; stainless steel or special alloys
Custom configurations available on request
Description
Refiner Range: Twin Disc, Conical & Cylindrical
Refining develops the bonding strength of fibers, and it is one of the biggest energy users in a stock preparation line. Our refiner range lets a mill match the machine to the fiber: a dual-zone twin disc refiner, a low-intensity conical refiner and a low-consistency cylindrical refiner, all with precise gap control and heavy-duty construction for continuous operation.
Twin Disc Refiner
A floating rotor on a splined shaft refines on both faces at once and keeps the same disc gap on each side. The rotor weighs roughly 60% less than a conventional one, which cuts inertia and no-load power, and the open area is about 180% larger for higher throughput. Disc gap is set and held automatically, the bearings run in an oil bath for 24/7 duty, and quick-change disc mounting shortens grade changes. It suits stock preparation and approach flow for writing, printing, packaging and specialty grades.
Conical Refiner
A progressive conical zone exposes fiber evenly across the refining surface. Low-intensity refining builds bonding potential with little cutting, and a tangential inlet with an optimized chamber keeps flow steady. A cantilever design gives quick access to rotor and stator, a simplified loading system shortens filling changes, and CNC-machined fillings are available in patterns for short, long or mixed fiber.
Refiner Discs
Discs come in a wide choice of patterns and in stainless steel or special alloys: milled discs for high-intensity refining, cast discs for standard duty and welded discs for custom patterns on special fibers.
Cylindrical Low-Consistency Refiner
A cylindrical chamber with tangential inlet and outlet keeps fibers in the active zone longer while limiting hydraulic losses. The stator position adjusts to micrometre precision while running, and an integrated magnetic trap removes metal before it reaches the refining zone.
Features
- Precise gap control for stable freeness and consistent results from batch to batch
- Lower specific energy per tonne refined and low no-load power
- Gentle treatment that reduces fiber cutting and fines
- Better tensile, burst and tear strength, formation and dewatering
- Compatible with DCS and PLC systems for automated refining control
- Compact footprint suited to retrofits, with quick filling changes
Applications
- Stock preparation for virgin, recycled and blended furnishes
- Packaging papers, board, writing and printing grades
- Tissue stock preparation
- Approach flow refining for final freeness adjustment
Materials
- Stainless steel wetted parts
- Heavy-duty cast housing and bearings
- Wear-resistant stainless and chrome alloy refiner fillings
Double Disc Refiner: common questions
Where is Double Disc Refiner used?
Stock preparation for virgin, recycled and blended furnishes; Packaging papers, board, writing and printing grades; Tissue stock preparation; Approach flow refining for final freeness adjustment.
What materials are available for Double Disc Refiner?
Stainless steel wetted parts; Heavy-duty cast housing and bearings; Wear-resistant stainless and chrome alloy refiner fillings.
What do you need to quote Double Disc Refiner?
Furnish type and target freeness; Production rate (t/day) and consistency; Plate diameter or existing refiner model; Available motor power; Site location and timeline.
