Stock Preparation

Screening & Cleaning System

Multi-stage pressure screens and high/low-density cleaners engineered for complete contaminant isolation, shive removal, and stock purification.

Specifications

Operating Consistency
Coarse (2.0%–4.5%), Fine (0.8%–1.5%), LDC (0.5%–1.2%)
System Capacity Range
30 TPD – 1,000+ TPD
Basket Hole Sizes
1.0 mm – 3.0 mm
Basket Slot Sizes
0.10 mm – 0.35 mm
Hydrocyclone Inlet Pressure
2.0 bar – 3.5 bar
Differential Pressure Drop
0.8 bar – 1.2 bar

Description

Pulp Screening & Cleaning System

The Pulp Screening & Cleaning System provides comprehensive stock purification across coarse screening, fine slotted screening, high-density cleaning, and multi-stage hydrocyclone plants. Engineered to protect high-speed paper machines from debris, shives, stickies, and abrasive grit, the system ensures optimal fiber yield and web runnability.

Integrated System Components & Flow Dynamics

Stock cleaning is achieved through sequential density-based and size-based separation stages:

  • High-Density Cleaners (HDC): Heavy-duty hydrocyclones operating at 2.5% to 5.0% consistency to centrifugal-force trap tramp metal, stones, glass, and heavy sand before coarse screens.

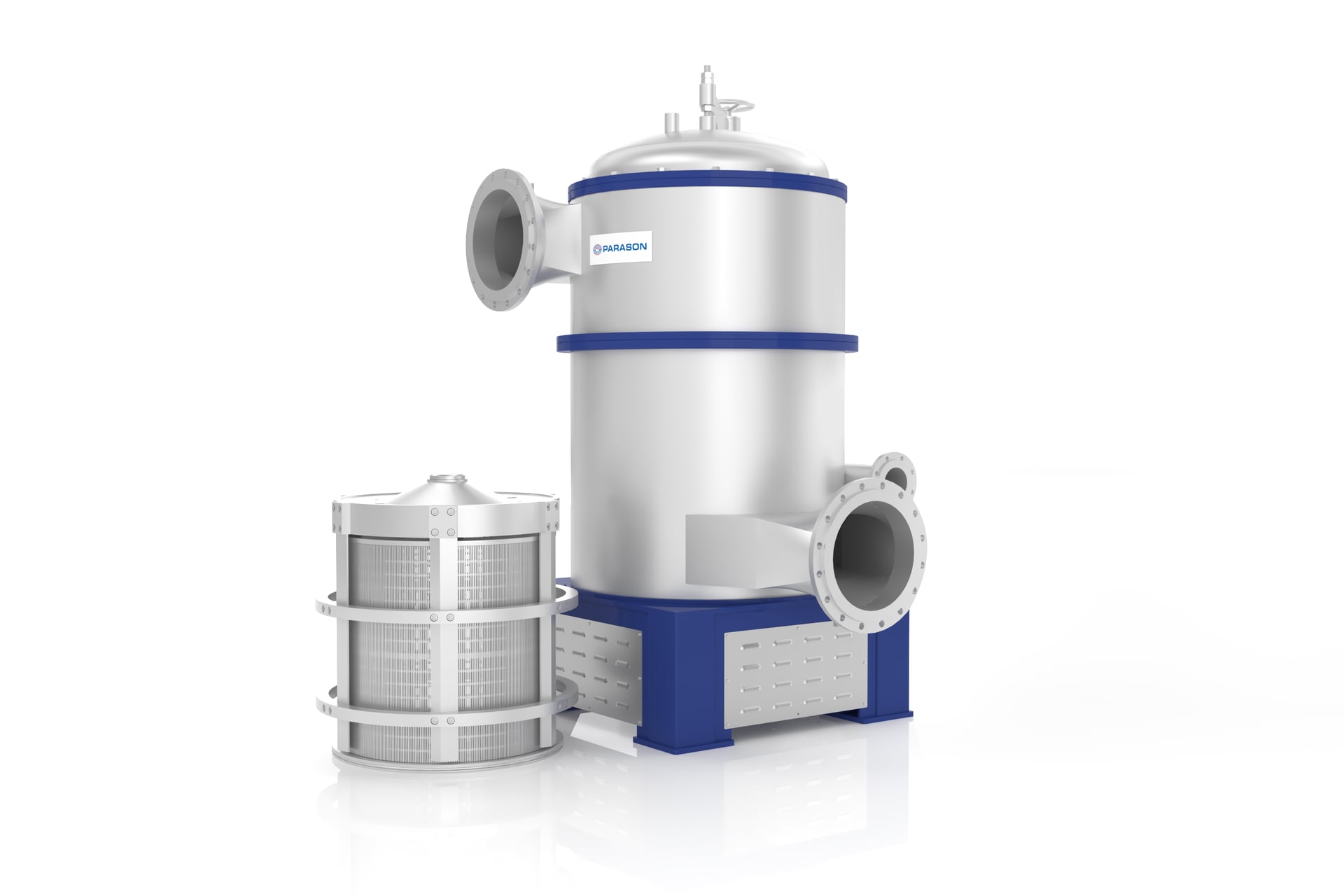

  • Coarse Pressure Screens: Inward-flow or outward-flow screens with perforated baskets (1.2 mm to 2.5 mm holes) for isolating unpulped fiber flakes, plastic films, and large debris.
  • Fine Pressure Screens: High-efficiency slotted pressure screens utilizing precision wedge-wire baskets (0.10 mm to 0.25 mm slot widths) paired with non-pulsating aerofoil rotors to eliminate micro-stickies, shives, and fine latex.
  • Low-Density Cleaner (LDC) Banks: Multi-stage, low-consistency (0.5% to 1.2%) hydrocyclones equipped with ceramic lower cones for removing fine sand, bark, and light contaminants.
  • Reject Sorters & Tailing Screens: Enclosed secondary and tertiary reject handling screens designed for zero-fiber-loss operation.

Features

  • Comprehensive High-Density Cleaners, Pressure Screens, and LDC Hydrocyclones
  • Non-Blinding Aerofoil Rotors generating suction pulses to maintain continuous slot clearance
  • Precision Wedge-Wire Slotted Baskets (down to 0.10 mm) with Hard Chrome Plating
  • Low Pressure Drop Design reducing pump energy consumption per ton of pulp
  • Alumina Ceramic and Polyurethane Lower Cones for extreme sand and abrasive resistance
  • Zero-Fiber-Loss Tailing & Reject Sorters maximizing good fiber recovery
  • Full Stainless Steel Vessel Construction polished for corrosion protection and cleanliness

Applications

  • Coarse and fine stock screening in recycled OCC, MOW, and SOP pulp lines
  • Approach flow screening immediately upstream of paper machine headboxes
  • Deinking plant stock screening and light contaminant hydrocyclone cleaning
  • Brownstock knotting and screening in chemical pulp mills

Materials

  • SS-304 / SS-316L Polished Stainless Steel Screen Vessel
  • SS-316L Wedge-Wire Basket with Hard Chrome Coating (100–150 microns)
  • Cast SS-316 Aerofoil Rotor with Stellite/Carbide hard-faced foils
  • Alumina Ceramic / Polyurethane Hydrocyclone Lower Cones

Screening & Cleaning System: common questions

Where is Screening & Cleaning System used?

Coarse and fine stock screening in recycled OCC, MOW, and SOP pulp lines; Approach flow screening immediately upstream of paper machine headboxes; Deinking plant stock screening and light contaminant hydrocyclone cleaning; Brownstock knotting and screening in chemical pulp mills.

What materials are available for Screening & Cleaning System?

SS-304 / SS-316L Polished Stainless Steel Screen Vessel; SS-316L Wedge-Wire Basket with Hard Chrome Coating (100–150 microns); Cast SS-316 Aerofoil Rotor with Stellite/Carbide hard-faced foils; Alumina Ceramic / Polyurethane Hydrocyclone Lower Cones.

What do you need to plan a Screening & Cleaning System project?

Furnish and contaminants to remove; Production rate (t/day) and consistency; Paper grade produced; Existing screens or cleaners, if upgrading; Site location and timeline.

Who supplies Screening & Cleaning System in Indonesia?

PT Misuba Guna Indonesia supplies Screening & Cleaning System projects across Indonesia from its base in Tangerang, Banten. Each project starts with a technical discussion and a site visit, followed by a proposal engineered around your process, capacity and site. Contact our engineering team at sales@misubaguna.com or WhatsApp +62 811-8715-671 to discuss your plans.

Planning a Screening & Cleaning System project?

Every project is engineered around your process, capacity and site. Tell us about your plans and our engineering team will arrange a technical discussion and site visit, then prepare a proposal.
