Coating
PTFE Coating
Precision industrial PTFE / Xylan fluoropolymer coating service applied to fasteners, valves, molds, and process components for non-stick release, low friction, and salt-spray corrosion protection.
Specifications
- Dry Film Thickness (DFT)
- 15 to 50 microns for fasteners; up to 100+ microns for heavy release/chemical duty
- Corrosion Resistance
- Exceeds 1,500 hours ASTM B117 salt spray without red rust
- Continuous Temperature Rating
- -195°C to +260°C (PTFE/PFA)
Description
PTFE Coating
Precision industrial fluoropolymer PTFE (Teflon™ / Xylan®) surface coating services engineered by PT Misuba Guna Indonesia for industrial fasteners, valve internals, heat sealing jaws, mixing blades, and mold tooling. Applied via electrostatic spray or liquid dispersion and thermally cured in controlled ovens, our PTFE coatings bond tightly to metal substrates, delivering an ultra-low coefficient of friction, hydrophobic non-stick release properties, and exceptional salt-spray corrosion protection.
We specialize in fluoropolymer coating systems (PTFE, FEP, PFA, Xylan 1424/1014) tailored for subsea stud bolts, chemical valves, food-grade release equipment, and anti-galling threaded connections.
Custom Engineering Consultation & Ordering Guide
When requesting PTFE coating services, specify substrate material (B7 stud bolts, 2H nuts, SS316, Aluminum, Tool Steel), component quantities, layer thickness requirements, operating environment (offshore marine, chemical exposure, food contact), and required bake curing limits. We provide complete surface degreasing, phosphate/zinc priming, multi-coat spraying, and thickness gauge testing (ISO 2178).
Features
- Ultra-low coefficient of friction (0.05 to 0.10) prevents thread galling and breakout torque spikes on industrial stud bolts
- Exceptional salt-spray corrosion resistance (>1500 to 3000+ hours ASTM B117 salt spray test) for offshore marine fasteners
- Superior non-stick release properties prevent sticky polymer, rubber, food, or chemical residue adhesion on mold tooling
- Chemically resistant to solvents, fuel, hydraulic fluids, and weathering without degrading or flaking
- Food-contact compliant (FDA 21 CFR) formulations available for food processing and packaging machinery
Applications

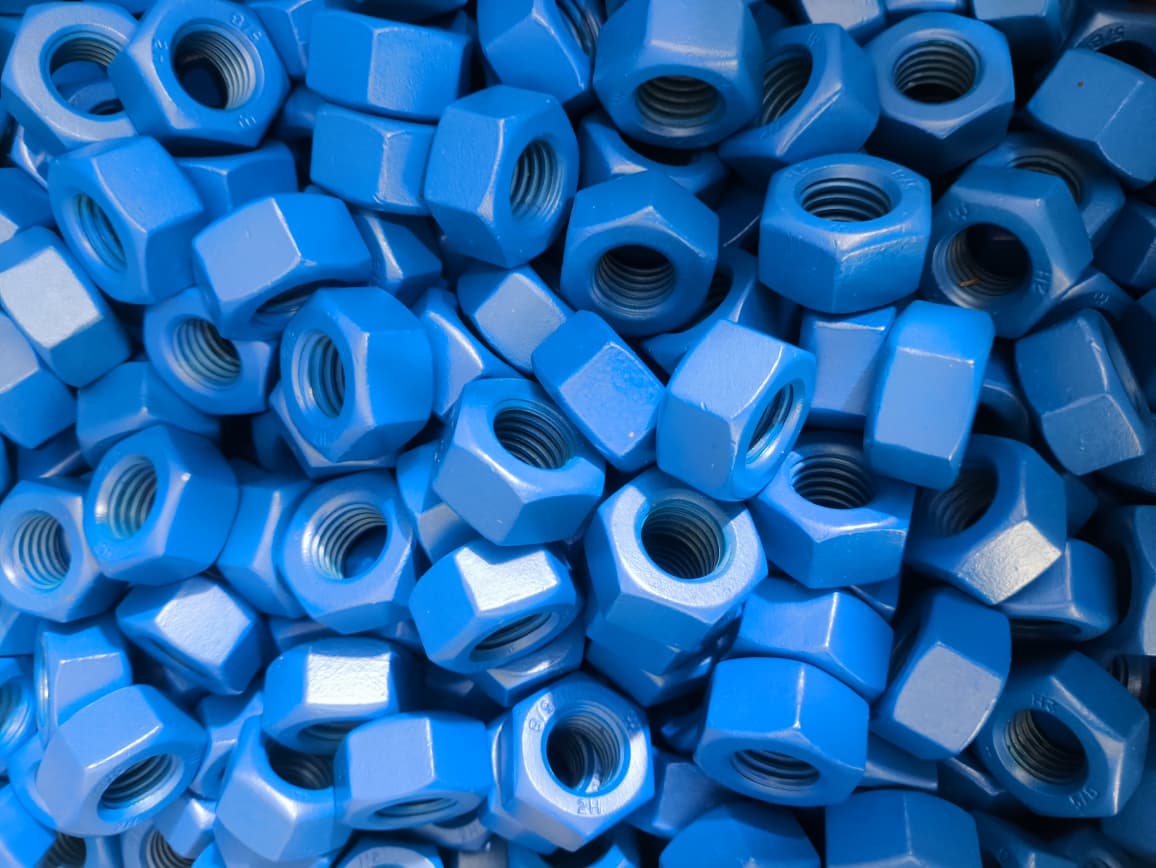

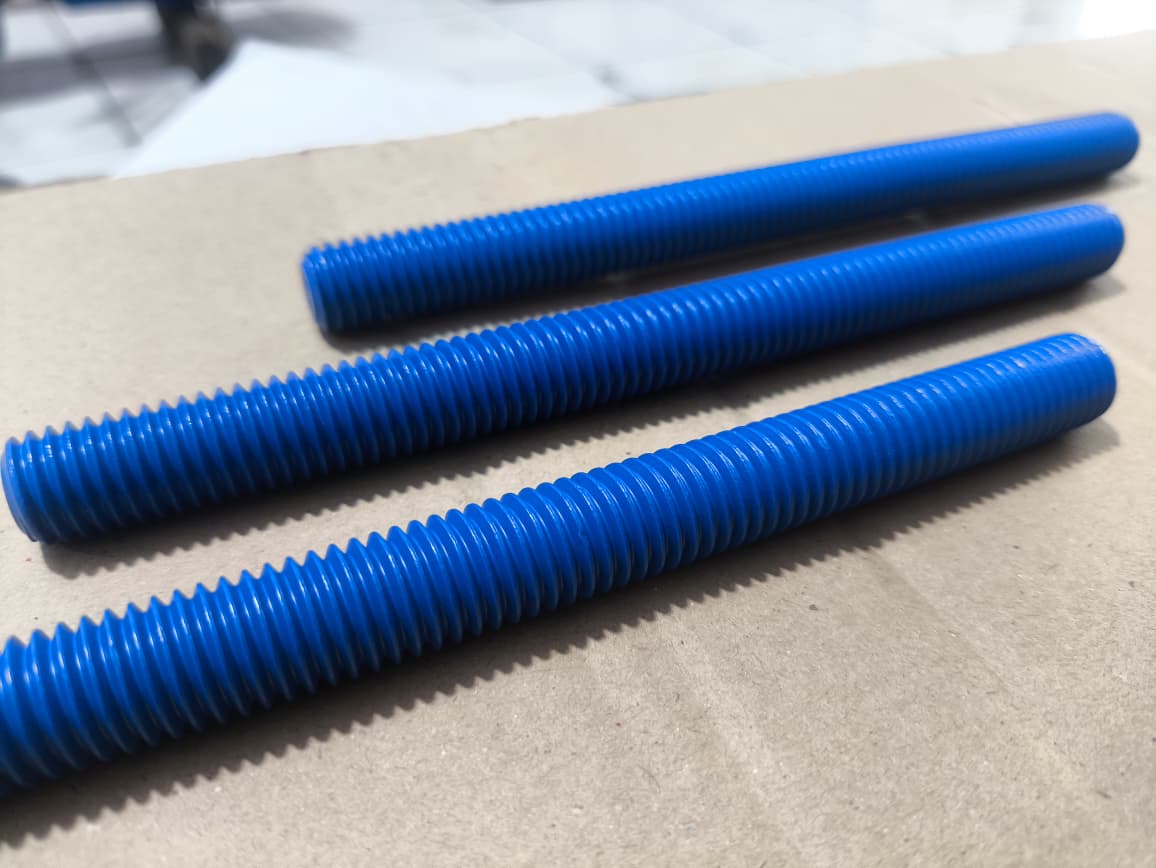

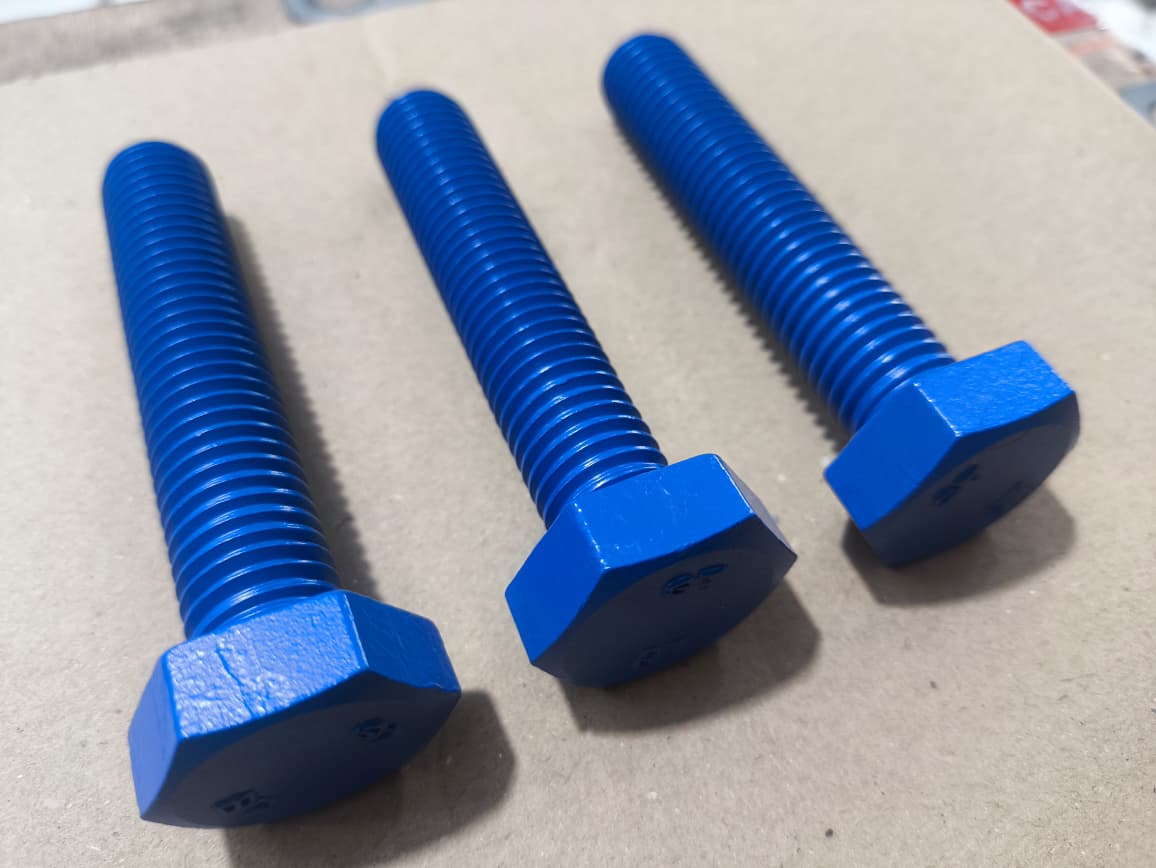

- Offshore oil & gas subsea stud bolts, nuts, and flange fastener assemblies (Xylan coated ASTM A193 B7/B16)
- Chemical control valve plugs, ball valve spheres, and actuator internal components
- Rubber and plastic molding dies, tire molds, and thermoforming tooling
- Food & bakery dough hoppers, heat sealing jaws, and conveyor guide rails
- Automotive fuel rail components, throttle shafts, and lock mechanisms
Materials
- Coating Systems: PTFE (Polytetrafluoroethylene), PFA, FEP, Xylan® 1014 / 1424 fluoropolymer resin matrices
- Primer Layer: Zinc phosphate, Epoxy-polyamide primer, Chromate-free corrosion inhibitor primer
- Substrate Compatibility: Carbon Steel, Alloy Steel (B7/B16), SS304/SS316, Inconel, Aluminum, Brass
PTFE Coating: common questions
Where is PTFE Coating used?
Offshore oil & gas subsea stud bolts, nuts, and flange fastener assemblies (Xylan coated ASTM A193 B7/B16); Chemical control valve plugs, ball valve spheres, and actuator internal components; Rubber and plastic molding dies, tire molds, and thermoforming tooling; Food & bakery dough hoppers, heat sealing jaws, and conveyor guide rails; Automotive fuel rail components, throttle shafts, and lock mechanisms.
What materials are available for PTFE Coating?
Coating Systems: PTFE (Polytetrafluoroethylene), PFA, FEP, Xylan® 1014 / 1424 fluoropolymer resin matrices; Primer Layer: Zinc phosphate, Epoxy-polyamide primer, Chromate-free corrosion inhibitor primer; Substrate Compatibility: Carbon Steel, Alloy Steel (B7/B16), SS304/SS316, Inconel, Aluminum, Brass.
What do you need to quote PTFE Coating?

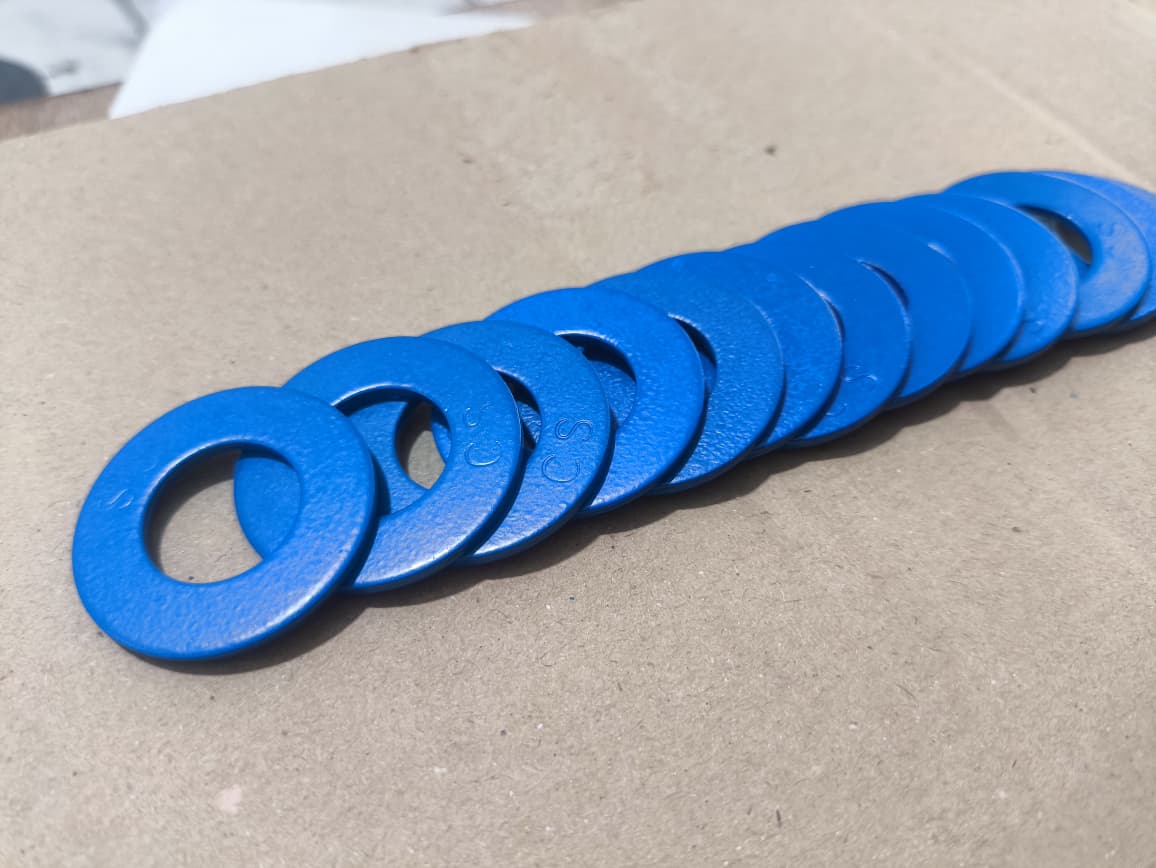

Parts to coat (bolts, nuts, fittings) and their sizes; Quantity per size; Coating colour and thickness requirement; Service environment: offshore, chemical or outdoor; Delivery location.
Who supplies PTFE Coating in Indonesia?
PT Misuba Guna Indonesia supplies PTFE Coating to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for PTFE Coating?
Send your operating conditions and quantity. Our sales team will check the details and quote.
