Molded Fiber

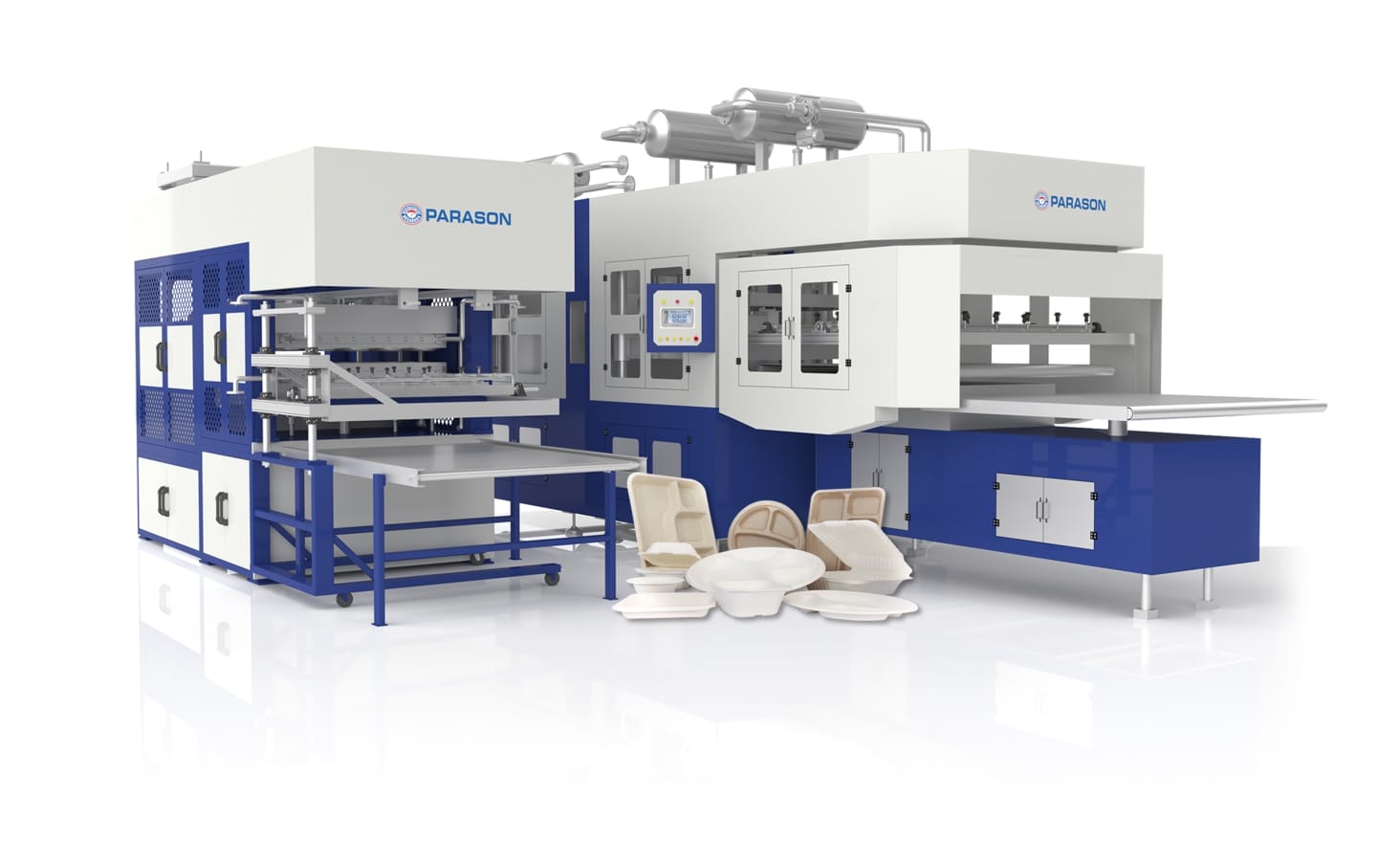

Molded Fiber Plant
Automatic and robotic molded fiber forming machines, trimming, molds and prototyping, from single machines to turnkey plants.
Specifications
- Platens
- 1500 × 1500, 1300 × 750, 1000 × 950 mm
- Output
- 350–850 kg/day depending on model
- Edge trimmer platen
- 760 × 600 mm
Plant capacity and layout designed per project
Description
Molded Fiber Machines & Turnkey Plants
Molded fiber offers a sustainable, biodegradable alternative to single-use plastic packaging. We supply the whole chain, from pulp preparation through forming, hot pressing, trimming and stacking, as standalone machines or as a complete turnkey plant.
Forming Machines
- Large automatic tableware line (1500 × 1500 mm platen): reciprocating dipping-type forming with integrated hot press and automatic stacking, producing trimming-free output at 700–850 kg/day.

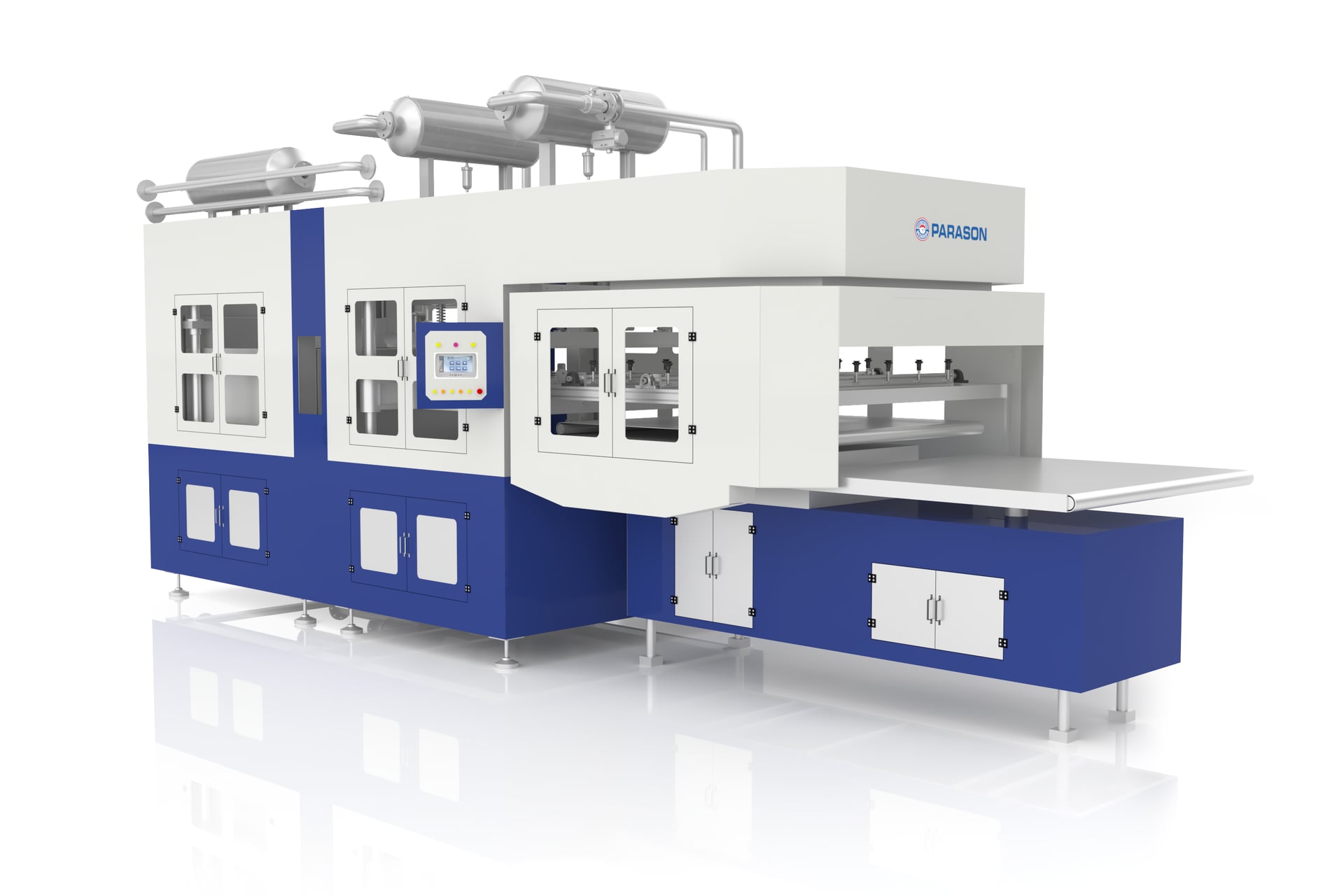

- Compact automatic machine (1300 × 750 mm platen): in-line transfer and integrated hot press for space-limited plants, 350–500 kg/day.
- Twin hot-press machine (1000 × 950 mm platen): two press stations for shorter drying cycles and servo-controlled transfer of pre-stacked parts, 350–500 kg/day.
- Robotic forming machine: six-axis robot pick-and-place with closed-loop feedback to reduce handling damage and rejects.
- Reciprocating forming machine: for complex shapes with shallow draft angles, with high-pressure automatic mesh cleaning, around 500 kg/day.
- Semi-automatic machine: floating pulp distribution and platen locking, no water inlet required, manual or robotic operation, around 500 kg/day.
Finishing
The edge trimming machine delivers precise edges and dimensional accuracy, with a 760 × 600 mm platen, hydraulic or hydro-pneumatic drive and safety light curtains.
Molds, Prototyping & Development
- Production molds machined on dedicated machining centres from corrosion-resistant alloy with a non-stick finish.
- Rapid prototyping from 3D CAD to shorten time to market and development cost.
- Product development support from concept to commercialisation, including material selection.
Features
- Fully automatic cycle from forming to hot pressing, trimming and stacking
- Large 1500 × 1500 mm platen for high output per cycle
- Robotic handling to cut rejects and labour
- Machines sized from compact to high-capacity
- In-house mold design, prototyping and product development
- Biodegradable products suited to food-service use
Applications
- Food-service tableware: plates, bowls, trays and clamshells
- Electronics and appliance packaging
- Industrial and automotive protective packaging
- Egg trays and fruit packaging
Materials
- Corrosion-resistant alloy molds with non-stick finish
- Welded structural steel machine frame
- Heated steel platens with hydraulic clamping
Molded Fiber Plant: common questions
Where is Molded Fiber Plant used?
Food-service tableware: plates, bowls, trays and clamshells; Electronics and appliance packaging; Industrial and automotive protective packaging; Egg trays and fruit packaging.
What materials are available for Molded Fiber Plant?
Corrosion-resistant alloy molds with non-stick finish; Welded structural steel machine frame; Heated steel platens with hydraulic clamping.
What do you need to quote Molded Fiber Plant?
Products to make (egg trays, fruit trays, industrial packaging, tableware); Output (pieces per hour or t/day); Raw material and drying method (sun, gas, diesel); Site area, energy source and level of automation; Project timeline.
Who supplies Molded Fiber Plant in Indonesia?
PT Misuba Guna Indonesia supplies Molded Fiber Plant to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Molded Fiber Plant?
Send your operating conditions and quantity. Our sales team will check the details and quote.
