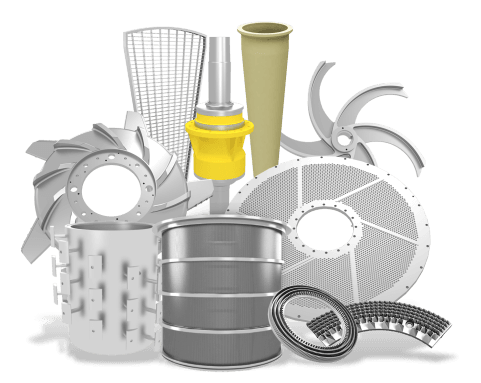

Wear Parts & Spares

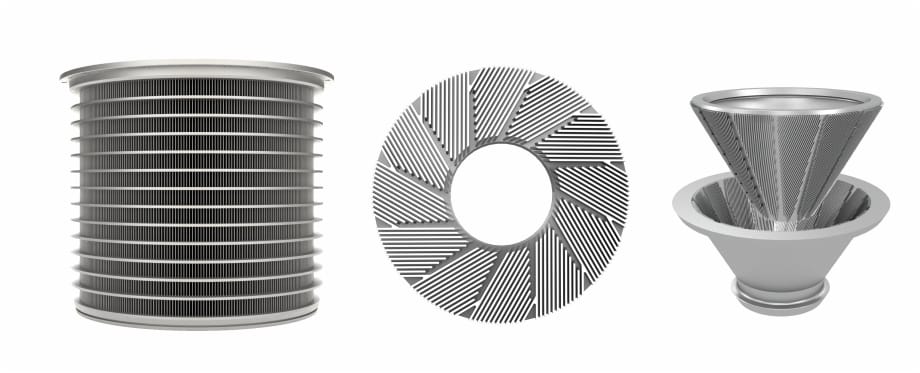

Refiner Plates & Screen Baskets
Replacement refiner fillings, plates and screen baskets for all major refiner and screen makes, built for long life and low energy use.
Specifications
- Refiner fillings
- 12–64 inch diameter
- Hole baskets
- 1.0–4.0 mm
- Slotted baskets
- 0.10–0.80 mm
- Basket size
- Ø200–2,000 mm, height up to 2,000 mm
- Plate sectors
- 7–24 per plate, flat disc and conical
Heat-treated alloys to suit the application
Description
Refiner Plates, Fillings & Screen Baskets
Wear parts decide refining quality, screening efficiency, energy use and mill uptime. Our refiner fillings, plates and screen baskets are made to fit major refiner and screen brands, with metallurgy and bar or slot design matched to the furnish.
Refiner Fillings & Plates
- Disc fillings and segments from 12 to 64 inches for twin disc and other disc refiners, with lower specific energy and longer life.
- Zero-draft bar plates (bar widths from 0.8 to 5.0 mm in welded versions, 1.0–2.8 mm in cast, welded or milled versions) that keep sharp edges as they wear. Re-milling can extend life by 40–60%.
- Dual-zone bar plates for mixed furnishes and reduced vibration.
- Small-angle-sector plates with variable groove depth: 24 sectors instead of 12 on flat discs and 9 instead of 7 on conical fillings, for more bar crossings per revolution. Deep grooves at the inlet deflake and shallow grooves at the outlet fibrillate, giving two refining stages in one plate.
- Conical fillings in monoblock and multi-section designs for the main conical refiner makes.
- Disperser and deflaker discs with surface treatment for vibration-free running.
- High-consistency defibrator fillings for MDF, HDF and fibreboard.
Screen Baskets & Rotors
- Hole baskets: 1.0–4.0 mm perforations, countersunk for high open area and even wear.
- Slotted baskets: wedge wire, C-bar and milled slots from 0.10 to 0.80 mm for low pressure drop. Profiled wedge-bar baskets are built with 3, 4 or 5 wedge wires per unit length to trade open area against rigidity, in diameters from 200 to 2,000 mm and heights up to 2,000 mm. Each basket is stress relieved, electropolished, hard chrome plated and fully inspected.
- High-consistency baskets: reinforced for 3–5% consistency screening.
- Black liquor filter and digester separator baskets for chemical pulp mills.
- Rotors: step, multi-vane aerofoil and centripetal designs matched to each screening stage.
Features
- Metallurgy and bar geometry matched to furnish and mill conditions
- Zero-draft design keeps refining intensity stable through service life
- Re-millable plates for lower cost per tonne
- Basket profiles for low pressure drop and even wear
- Fits all major refiner and screen makes as a replacement
- Supplied with dynamically balanced rotors where required
Applications
- Twin disc, conical and cylindrical refiner replacement
- Coarse, fine and approach flow pressure screens
- Disperser and deflaker upgrades
- MDF and fibreboard defibrators
Materials
- SS-304, 17-4 PH and martensitic chrome stainless alloys
- Premium cast alloys with custom heat treatment, verified by spectroscopy
- Wedge bars in SS316Ti on 2205 duplex stainless support rings
- Hard chrome plating 100–400 µm with electropolished finish
- Hard-faced cast rotors
Refiner Plates & Screen Baskets: common questions
Where is Refiner Plates & Screen Baskets used?
Twin disc, conical and cylindrical refiner replacement; Coarse, fine and approach flow pressure screens; Disperser and deflaker upgrades; MDF and fibreboard defibrators.
What materials are available for Refiner Plates & Screen Baskets?
SS-304, 17-4 PH and martensitic chrome stainless alloys; Premium cast alloys with custom heat treatment, verified by spectroscopy; Wedge bars in SS316Ti on 2205 duplex stainless support rings; Hard chrome plating 100–400 µm with electropolished finish; Hard-faced cast rotors.
What do you need to quote Refiner Plates & Screen Baskets?
Refiner or screen make, model and size; Plate pattern or basket slot or hole size (drawing or sample); Furnish and production rate; Current wear life; Quantity and delivery location.
Who supplies Refiner Plates & Screen Baskets in Indonesia?
PT Misuba Guna Indonesia supplies Refiner Plates & Screen Baskets to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Refiner Plates & Screen Baskets?
Send your operating conditions and quantity. Our sales team will check the details and quote.
