Coating
Ceramic Coating
Advanced liquid ceramic polymer coatings and thermal spray ceramic barriers applied to metal components to prevent high-temperature oxidation, cavitation, erosion, and chemical corrosion.
Specifications
- Coating Thickness
- 500 microns to 3000 microns for liquid ceramic; 150-400 microns for thermal spray
- Adhesion Strength

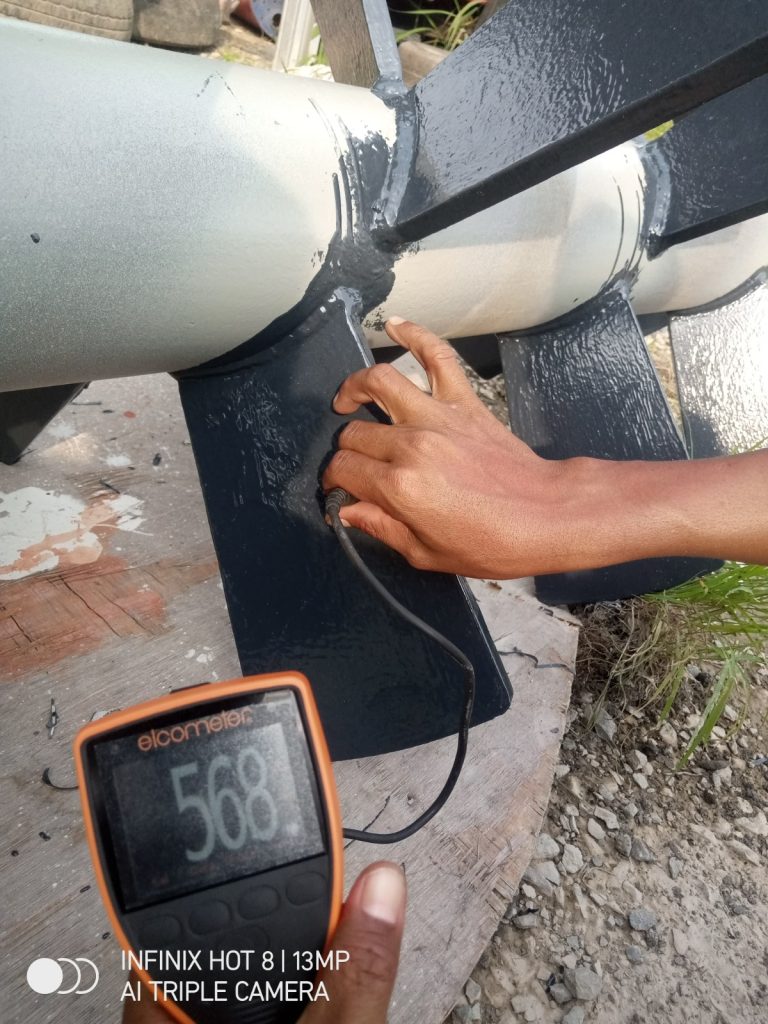

- >20 MPa (Elcometer pull-off test on steel per ASTM D4541)
- Temperature Limit
- Liquid Ceramic (up to 180°C wet / 230°C dry); Thermal Spray Ceramic (up to 900°C)
Description
Ceramic Coating
High-performance ceramic polymer surface coatings and thermal spray ceramic ceramic-composite solutions engineered by PT Misuba Guna Indonesia for pump casings, valve bodies, heat exchanger end-covers, and boiler tubes operating under severe cavitation, erosion, and high-temperature oxidation. Our liquid ceramic epoxy coatings incorporate micro-fine silicon carbide and aluminum oxide ceramic spheres within an ultra-dense polymer matrix, creating a smooth, low-friction protective barrier over metal surfaces.
In addition to liquid-applied ceramic polymers, we offer arc spray and plasma thermal spray ceramic coatings (Chromium Oxide, Alumina-Titania) for extreme thermal barrier and hard-facing applications.
Custom Engineering Consultation & Ordering Guide
To select the correct ceramic coating system for your pump or heat exchanger rebuild, specify component material (cast iron, carbon steel, bronze, stainless), fluid media, operating temperature, and damage mode (cavitation pitting, slurry erosion, chemical corrosion). PT Misuba Guna Indonesia provides precision abrasive grit blasting, precision multi-coat application, and dynamic balancing for rotating impellers.
Features
- Restores cavitated pump impellers and volutes to original hydraulic efficiency, reducing power consumption
- Ultra-smooth ceramic finish improves fluid hydrodynamic flow efficiency by up to 3-5% while preventing erosion
- High micro-hardness ceramic particles protect pump casings and valve seats against severe particle impact and cavitation
- Exhibits superior dielectric strength, eliminating galvanic corrosion between dissimilar metal assemblies
- High thermal barrier properties protect boiler tubes and engine manifolds from high-temperature gas scaling
Applications
- Cooling water pump casings, impellers, suction bells, and cutlass bearing journals
- Plate heat exchanger end plates, tube sheets, and water box covers
- Slurry pump volutes, dredging pump components, and hydrocyclone bodies
- Industrial control valves, butterfly valve discs, and sea chest strainers
- Boiler economizer tubes, exhaust fan blades, and duct expansion sleeves
Materials
- Polymer Base: Ceramic-reinforced 100% solids epoxy matrix (solvent-free), Novolac epoxy ceramic
- Ceramic Fillers: Micro-spherical Alumina (Al2O3), Silicon Carbide (SiC), Quartz flour
- Thermal Spray Ceramics: Chromium Oxide (Cr2O3), Alumina-Titania (Al2O3-TiO2 87/13)
Ceramic Coating: common questions
Where is Ceramic Coating used?
Cooling water pump casings, impellers, suction bells, and cutlass bearing journals; Plate heat exchanger end plates, tube sheets, and water box covers; Slurry pump volutes, dredging pump components, and hydrocyclone bodies; Industrial control valves, butterfly valve discs, and sea chest strainers; Boiler economizer tubes, exhaust fan blades, and duct expansion sleeves.
What materials are available for Ceramic Coating?
Polymer Base: Ceramic-reinforced 100% solids epoxy matrix (solvent-free), Novolac epoxy ceramic; Ceramic Fillers: Micro-spherical Alumina (Al2O3), Silicon Carbide (SiC), Quartz flour; Thermal Spray Ceramics: Chromium Oxide (Cr2O3), Alumina-Titania (Al2O3-TiO2 87/13).
What do you need to quote Ceramic Coating?
Part or surface to coat, with dimensions; Service condition: heat, wear, corrosion or chemical; Operating temperature; Substrate material and current condition; Quantity and delivery or site location.
Who supplies Ceramic Coating in Indonesia?
PT Misuba Guna Indonesia supplies Ceramic Coating to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
.jpeg)
Need a price, sizing or a drawing for Ceramic Coating?
Send your operating conditions and quantity. Our sales team will check the details and quote.
