Flexible Joint
Metal Expansion Joint
High-precision stainless steel and high-alloy bellows expansion joints engineered for thermal expansion compensation in high-pressure steam, oil, and gas piping.
Description

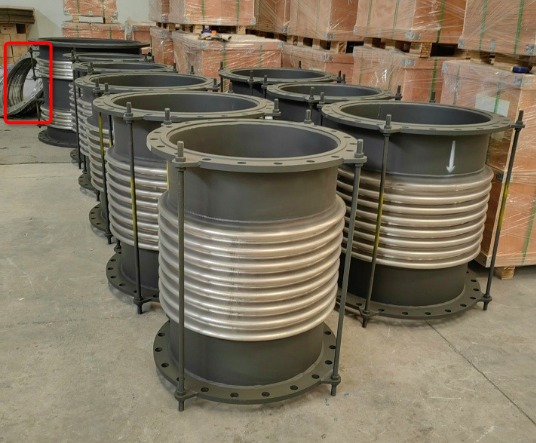

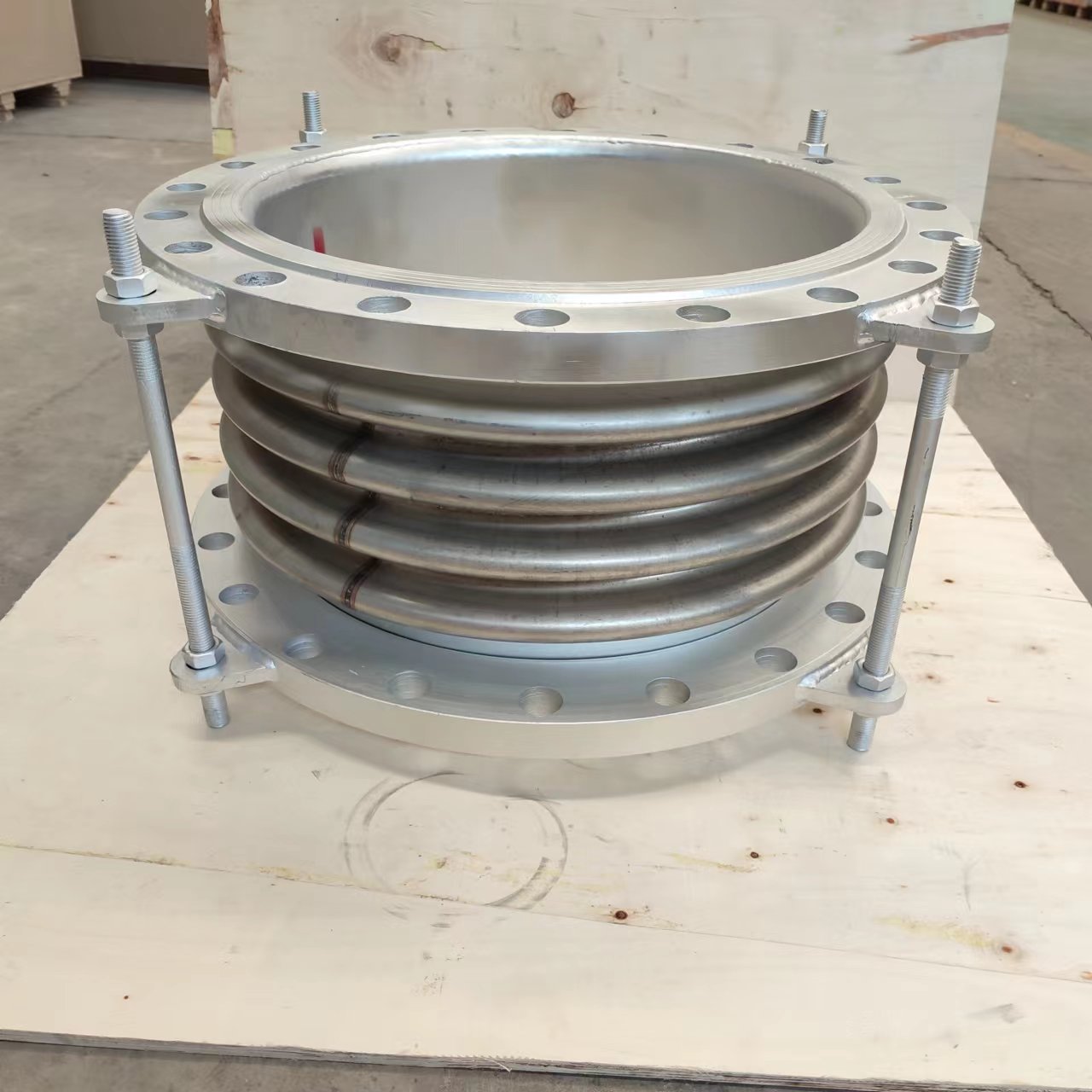

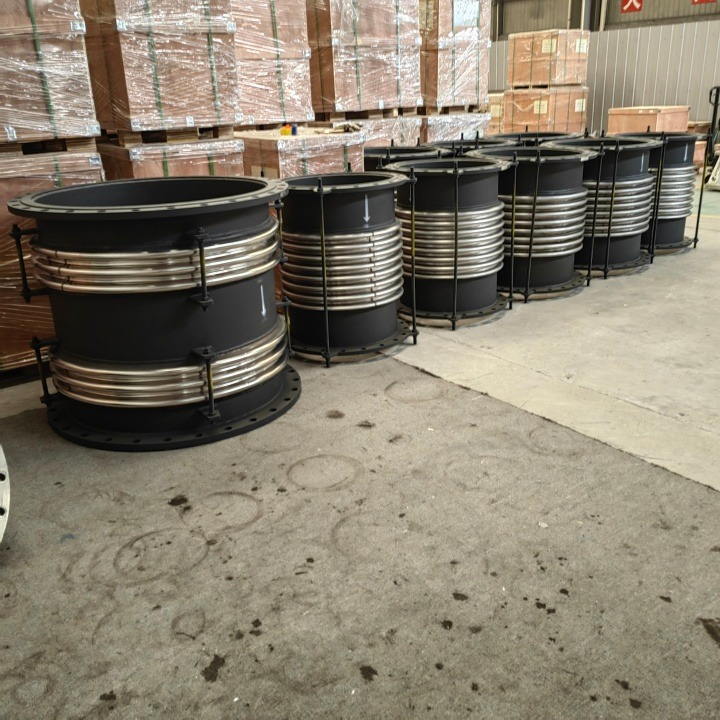

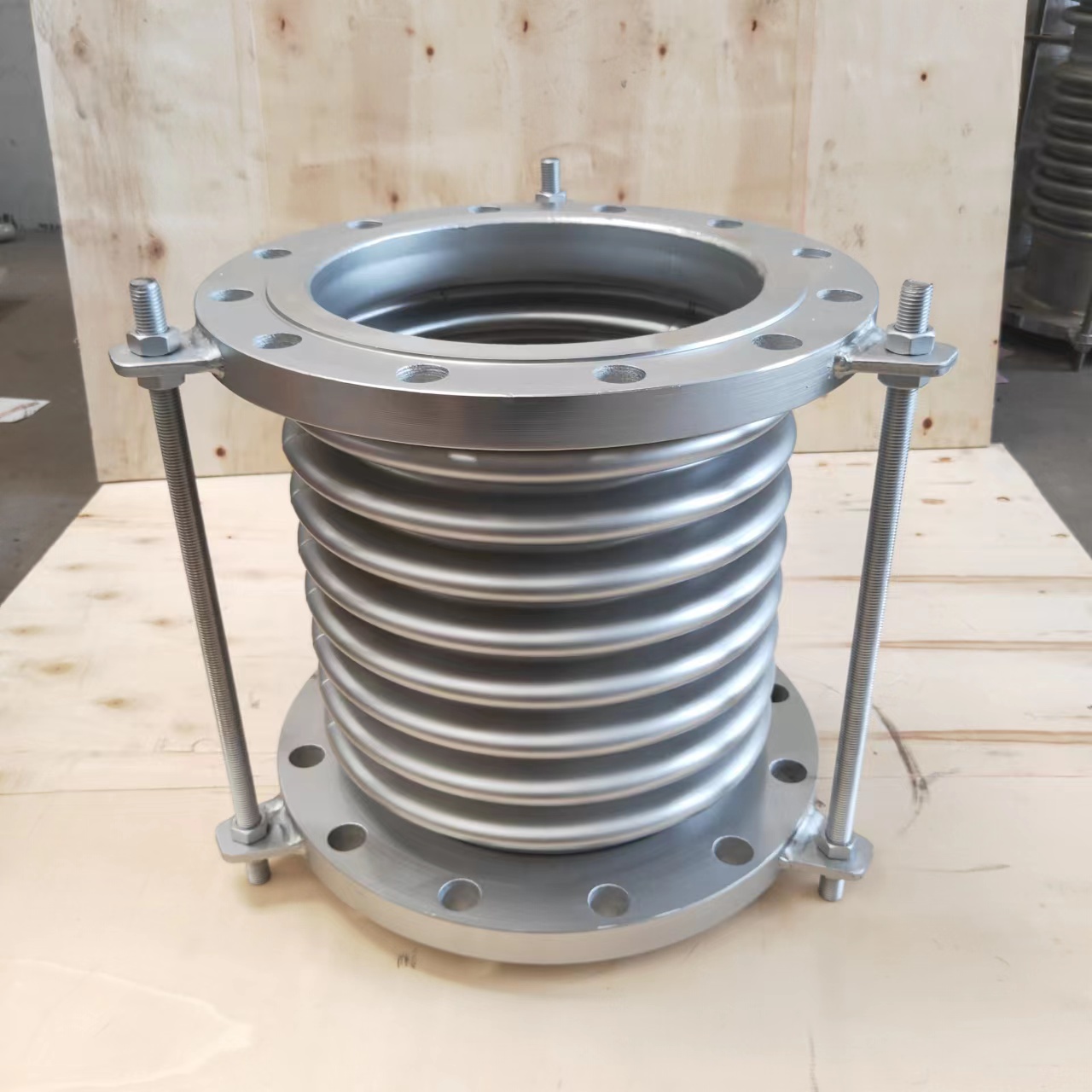

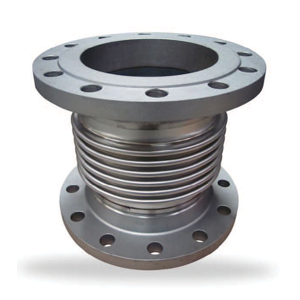

Metal Expansion Joint
Precision-engineered stainless steel and high-alloy bellows expansion joints manufactured to absorb severe thermal expansion, pipe stress, and vibration in pressurized liquid and steam piping. PT Misuba Guna Indonesia supplies custom metal expansion joints featuring hydroformed or roll-formed multi-ply bellows (SS304, SS316L, SS321, or Inconel 625) engineered to withstand cyclic thermal fatigue and high working pressures.

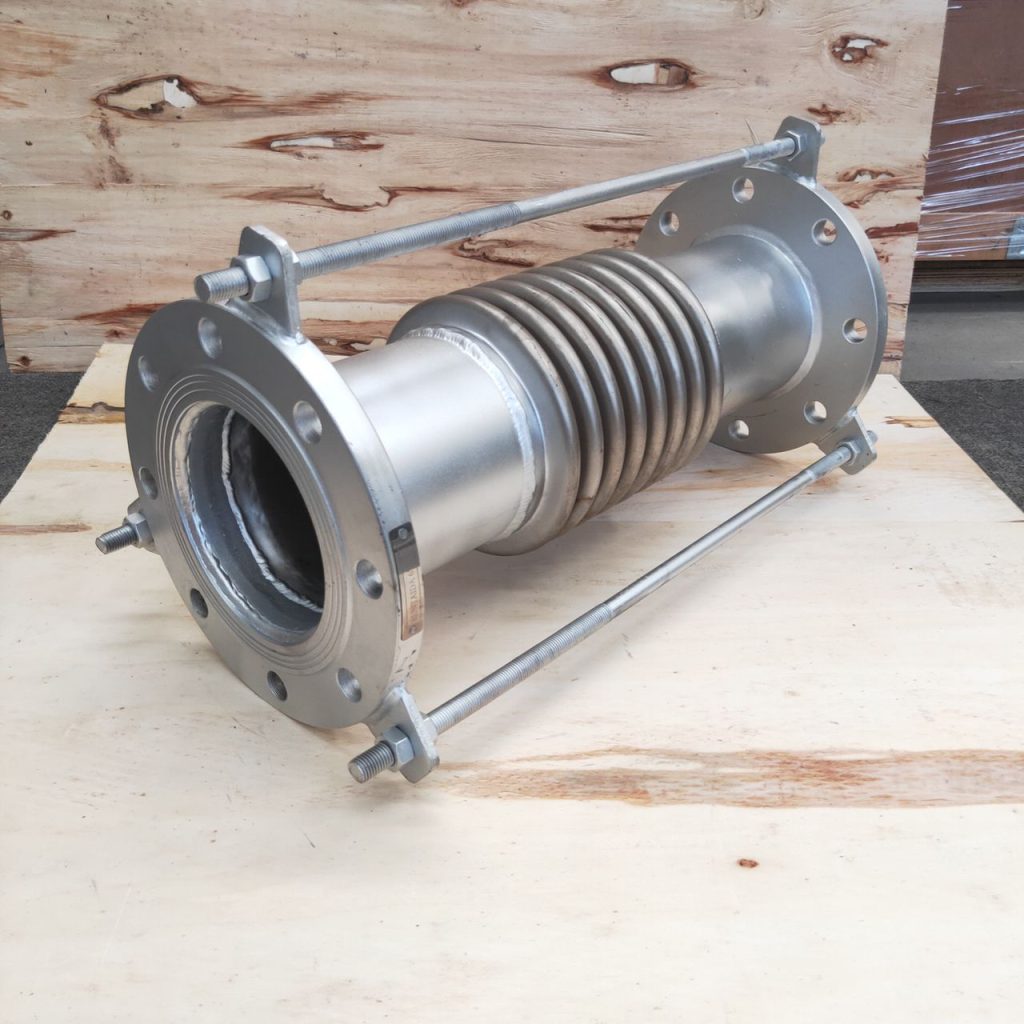

Available in axial, tied-lateral, universal, hinged, and gimbal configurations to resolve complex thermal growth in restricted pipe runs.
Custom Engineering Consultation & Ordering Guide
To receive a precise engineering proposal for metal expansion joints, please submit your pipe nominal bore (DN/NB), design pressure (PN rating or ANSI class), design temperature, fluid media, and target cycle life. If your piping layout includes anchors and guides, share the isometric drawing for optimal bellows selection.
Features
- Multi-ply bellows design provides high pressure capacity combined with low axial spring rate and maximum flex fatigue life
- SS321 and SS316L standard bellows offer exceptional resistance to high-temperature scaling and stress corrosion cracking
- Internal flow sleeves minimize pressure drop and prevent flow-induced vibration in high-velocity steam lines
- External protective covers prevent external mechanical damage and debris accumulation in bellows convolutions
- Available with fixed/floating flanges, butt-weld ends, or threaded pipe stubs matching international standards (DIN, ANSI, JIS)
Applications
- High-pressure steam distribution headers and condensate return lines
- Thermal oil heating systems in palm oil refineries (PKS) and oleochemical plants
- Petrochemical refinery process piping and heat exchanger nozzle connections
- District heating pipelines and power plant steam turbine cross-over piping
- Marine engine exhaust manifolds and ballast water piping
Materials
- Bellows: SS304, SS316L, SS321, SS310S, Inconel 625, Hastelloy C-276
- End Fittings: Carbon steel (A105, A234 WPB), SS304, SS316, or alloy steel
- Internal Sleeve / External Shroud: SS304, SS316L, Heavy carbon steel
Metal Expansion Joint: common questions
Where is Metal Expansion Joint used?
High-pressure steam distribution headers and condensate return lines; Thermal oil heating systems in palm oil refineries (PKS) and oleochemical plants; Petrochemical refinery process piping and heat exchanger nozzle connections; District heating pipelines and power plant steam turbine cross-over piping; Marine engine exhaust manifolds and ballast water piping.
What materials are available for Metal Expansion Joint?
Bellows: SS304, SS316L, SS321, SS310S, Inconel 625, Hastelloy C-276; End Fittings: Carbon steel (A105, A234 WPB), SS304, SS316, or alloy steel; Internal Sleeve / External Shroud: SS304, SS316L, Heavy carbon steel.
What do you need to quote Metal Expansion Joint?
Pipe size and end type (flanged or weld end); Design pressure and temperature; Axial, lateral and angular movement to absorb; Medium and preferred bellows material; Quantity and delivery location.
Who supplies Metal Expansion Joint in Indonesia?
PT Misuba Guna Indonesia supplies Metal Expansion Joint to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Metal Expansion Joint?
Send your operating conditions and quantity. Our sales team will check the details and quote.
