Vertical Conveying
Bucket Elevator
Belt and chain bucket elevators for lifting grain, meal, cement, clinker, fertilizer and other bulk solids vertically, designed to your capacity and lift height.
Specifications
- Typical capacity
- from a few t/h up to several hundred t/h
- Typical lift height
- up to around 60 m, higher by design
- Drive
- gear motor with holdback, belt speed matched to the discharge type
- Material temperature
- chain type for hot material, typically up to 250 °C
Capacity, bucket size and spacing configured to your material
Description
Bucket Elevators: Belt and Chain Type
A bucket elevator lifts bulk material vertically in the smallest footprint of any conveyor. Buckets fixed to a belt or chain scoop material at the boot and discharge it at the head. We design the elevator to your material, capacity and lift height, choosing belt or chain, bucket type and discharge style to suit how the material flows and how hot or abrasive it is.
Elevator Types
- Belt bucket elevator: buckets bolted to a rubber or steel-cord belt. Quiet, high speed and suited to free-flowing material such as grain, meal, sand and fertilizer, and to tall lifts.

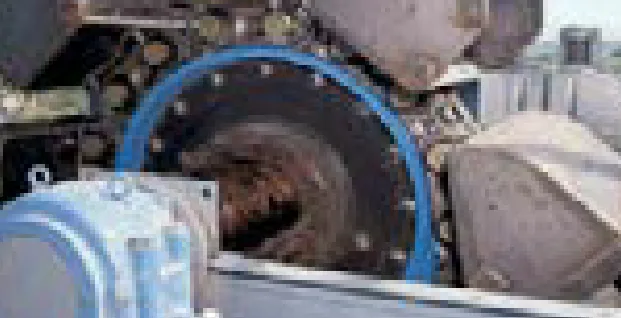

- Chain bucket elevator: buckets on one or two strands of round-link or plate chain. Suited to hot, lumpy or abrasive material such as clinker, coal and limestone.
- Centrifugal discharge: spaced buckets at higher speed throw material clear of the head, for free-flowing, fine to small lump material.
- Continuous discharge: closely spaced buckets at lower speed let material slide over the bucket ahead, for fragile, light or sluggish material.
Core Components
- Head section: drive pulley or sprocket, discharge chute, gear motor and holdback to stop run-back.
- Casing: single or twin-leg bolted casing, dust-tight, with inspection doors.
- Boot section: take-up pulley or sprocket with screw or gravity take-up and clean-out doors.
- Buckets: steel, stainless steel, nylon or polyethylene, in shapes matched to the material.
Spares and Retrofits
Worn buckets, belts, chains and head pulley lagging are what stop an elevator. We supply replacements for most makes, see conveyor spare and wear parts.
Features
- Lifts material vertically in a small footprint
- Belt or chain type chosen for the material, temperature and lift height
- Centrifugal or continuous discharge to suit how the material flows
- Dust-tight casing with inspection and clean-out doors
- Holdback and speed monitoring to protect the elevator
- Replacement elevators designed to fit existing inlets and discharge chutes
Applications
- Cement, clinker, raw meal and limestone
- Grain, rice, feed and flour mills
- Fertilizer and chemical plants
- Coal, biomass and fly ash handling
- Palm kernel, sugar and food processing
- Mining and mineral processing
Materials
- Mild steel or stainless steel casing
- Rubber, steel-cord or heat-resistant belts
- Forged round-link or plate chains in alloy steel
- Buckets in steel, stainless steel, nylon or polyethylene
- Abrasion-resistant liners at the boot and discharge
Bucket Elevator: common questions
Where is Bucket Elevator used?
Cement, clinker, raw meal and limestone; Grain, rice, feed and flour mills; Fertilizer and chemical plants; Coal, biomass and fly ash handling; Palm kernel, sugar and food processing; Mining and mineral processing.
What materials are available for Bucket Elevator?
Mild steel or stainless steel casing; Rubber, steel-cord or heat-resistant belts; Forged round-link or plate chains in alloy steel; Buckets in steel, stainless steel, nylon or polyethylene; Abrasion-resistant liners at the boot and discharge.
What do you need to quote Bucket Elevator?
Material handled, bulk density and lump size; Capacity (t/h) and material temperature; Conveying length, lift height or layout drawing; Site location and quantity.
Who supplies Bucket Elevator in Indonesia?
PT Misuba Guna Indonesia supplies Bucket Elevator to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
-
-
-
