Flexible Joint
Fabric Expansion Joint
Custom non-metallic fabric expansion joints designed by PT Misuba Guna Indonesia for high-temperature ductwork, boiler exhaust lines, and severe vibration isolation.
Specifications
- Duct Geometry

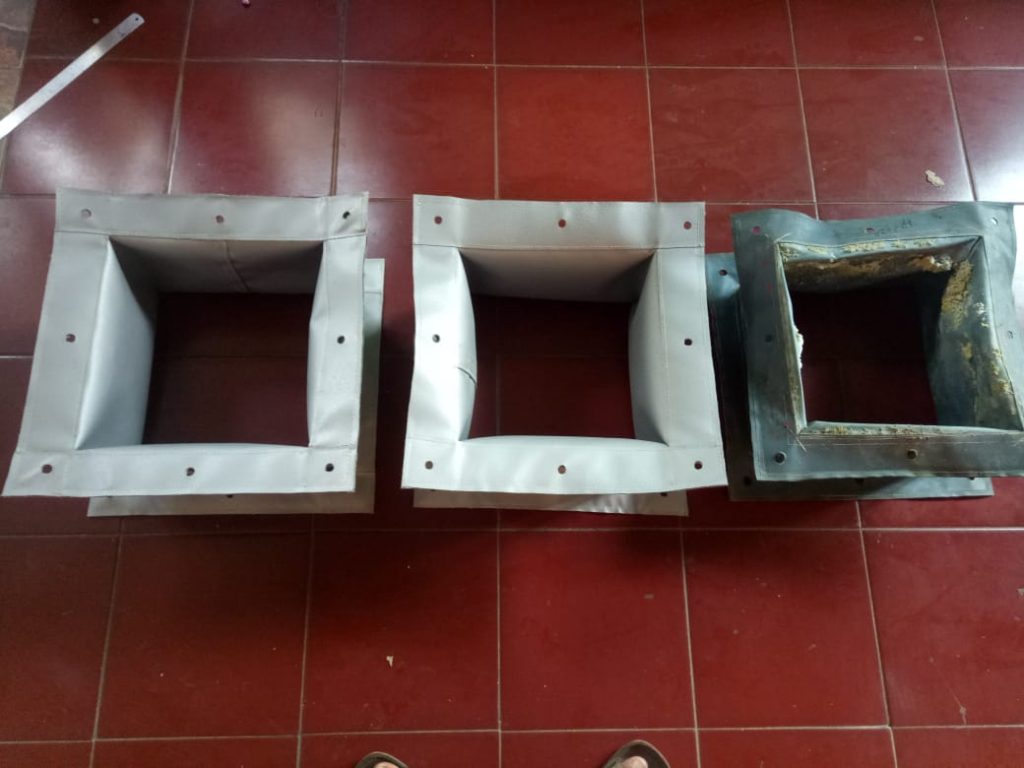

- Custom round (DN200 to DN4000+) or rectangular (any aspect ratio)
- Operating Pressure
- Low pressure ducting (-0.5 bar to +0.8 bar)
- Temperature Capability
- Up to 1100°C continuous service with multi-layer ceramic insulation
Description
Fabric Expansion Joint

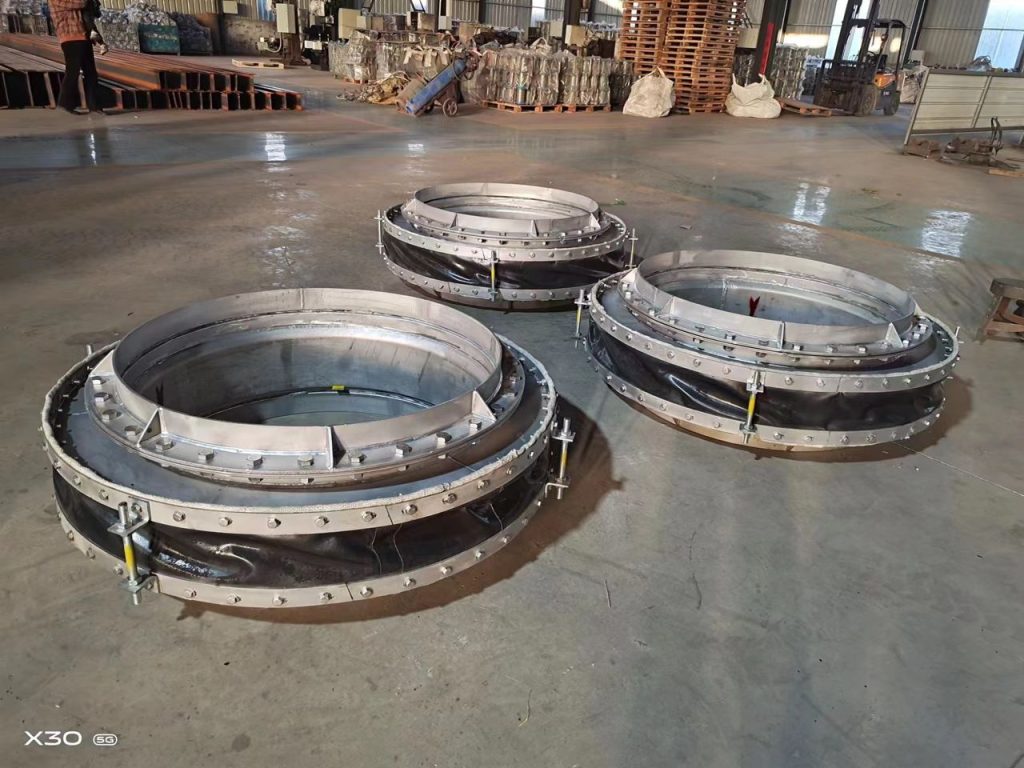

Custom-fabricated multi-layer fabric expansion joints built by PT Misuba Guna Indonesia for absorbing severe thermal growth, duct misalignment, and low-pressure gas vibrations. Unlike metal bellows, our non-metallic fabric joints absorb simultaneous multi-directional movements (axial, lateral, angular) with minimal spring rate reaction forces on boiler casings, ID/FD fan housings, and turbine exhaust stacks.

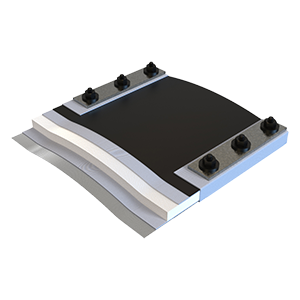

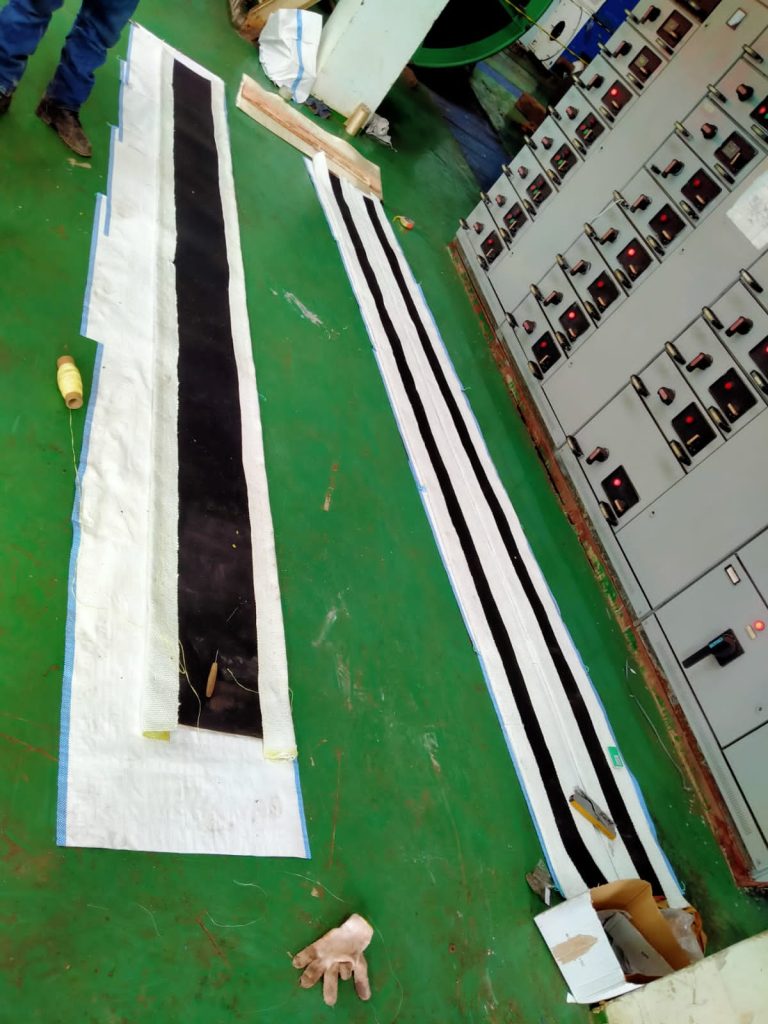

Built with high-grade outer elastomeric covers (silicone, fluoroelastomer, or EPDM), gastight PTFE chemical barriers, and thick thermal insulation belts (needle-felted ceramic fiber and high-silica fiberglass cloth).
Custom Engineering Consultation & Ordering Guide
When requesting a custom fabric expansion joint quote, please provide your duct flange dimensions (round or rectangular), normal & maximum operating temperature, flue gas media composition (SOx, NOx, fly ash abrasive concentration), and expected movement range. Our technical team will recommend the optimal multi-layer fabric build for your ducting layout.
Features
- Absorbs multi-directional thermal movement (axial, lateral, angular) without inducing spring rate stress on duct supports
- Custom multi-layer composite belting tailored for continuous operating temperatures from 150°C to over 1000°C
- Integrated ceramic fiber insulating belt protects gastight outer layers from direct thermal radiation
- Easily field-welded or bolted to existing companion flanges with internal metal liner sleeves to prevent ash erosion
- Zero maintenance fabric construction that eliminates fatigue cracking common in thin-gauge metal duct bellows
Applications
- Power plant boiler flue gas and turbine exhaust ducting (PLTU, PLTG, PLTU Biomass)
- Cement plant kiln preheaters, calciner ducts, and raw mill dust extraction lines
- Steel mill sintering lines and blast furnace flue gas ductwork
- Petrochemical incinerators and flare stack gas lines
- Industrial boiler ID fan and FD fan inlet/outlet isolation joints
Materials
- Outer Cover: Silicone-coated glass cloth, Fluoroelastomer canvas, EPDM
- Gas Barrier: Solid PTFE sheet foil, PTFE-impregnated fiberglass

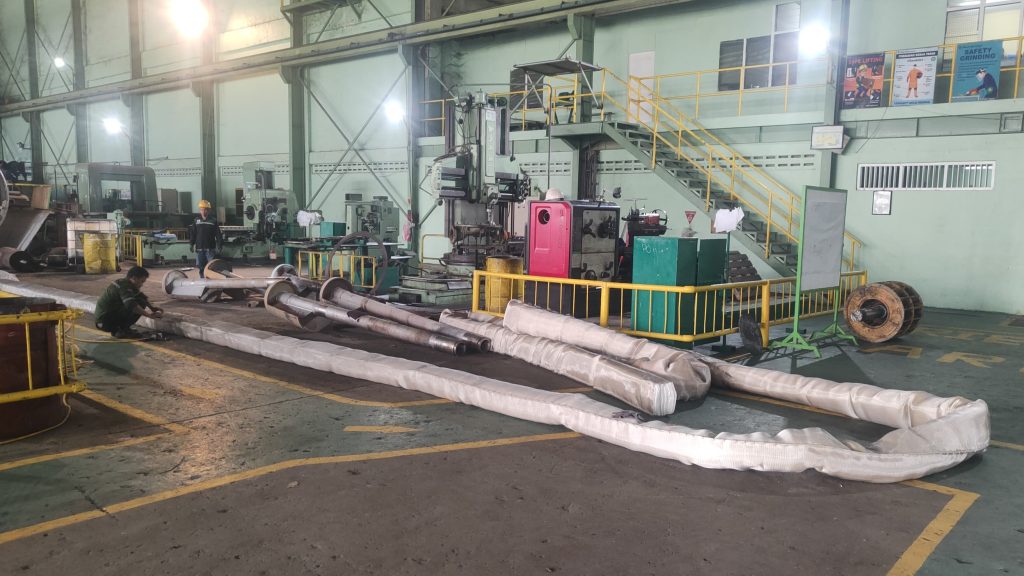

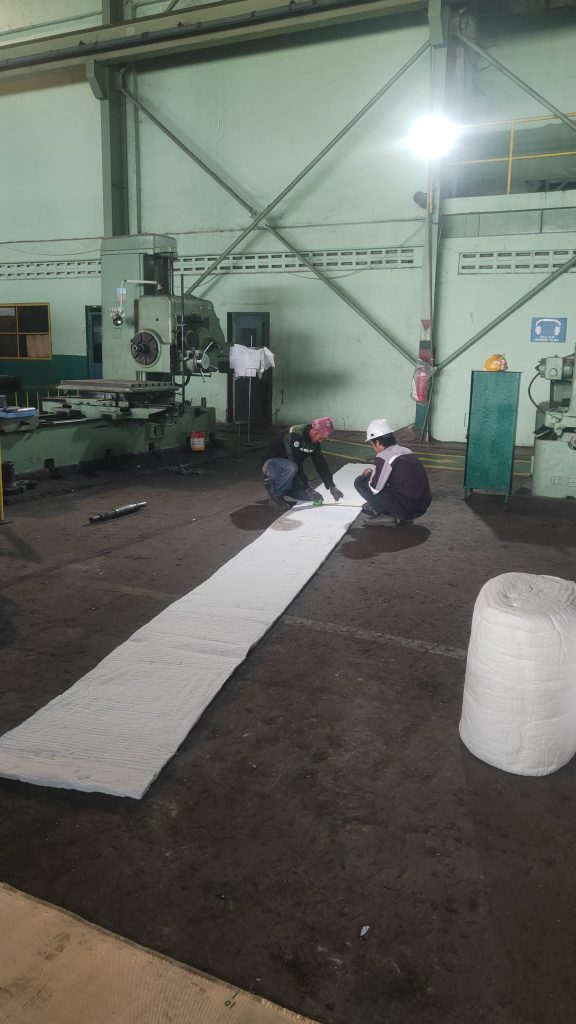

- Thermal Insulation: Needle-felted ceramic fiber blanket, high-silica glass mat
- Reinforcement & Liner: SS304/SS316 wire mesh, internal SS304 flow sleeve, carbon steel backing bars
Fabric Expansion Joint: common questions
Where is Fabric Expansion Joint used?
Power plant boiler flue gas and turbine exhaust ducting (PLTU, PLTG, PLTU Biomass); Cement plant kiln preheaters, calciner ducts, and raw mill dust extraction lines; Steel mill sintering lines and blast furnace flue gas ductwork; Petrochemical incinerators and flare stack gas lines; Industrial boiler ID fan and FD fan inlet/outlet isolation joints.
What materials are available for Fabric Expansion Joint?
Outer Cover: Silicone-coated glass cloth, Fluoroelastomer canvas, EPDM; Gas Barrier: Solid PTFE sheet foil, PTFE-impregnated fiberglass; Thermal Insulation: Needle-felted ceramic fiber blanket, high-silica glass mat; Reinforcement & Liner: SS304/SS316 wire mesh, internal SS304 flow sleeve, carbon steel backing bars.
What do you need to quote Fabric Expansion Joint?
Duct size and shape (round or rectangular); Gas temperature, operating and peak; Duct pressure or vacuum, and dust or condensate load; Axial, lateral and angular movement to absorb; Quantity and delivery location.
Who supplies Fabric Expansion Joint in Indonesia?
PT Misuba Guna Indonesia supplies Fabric Expansion Joint to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Fabric Expansion Joint?
Send your operating conditions and quantity. Our sales team will check the details and quote.
