Vessels & Tanks
Storage Tank
Vertical and horizontal atmospheric storage tanks in carbon steel, stainless steel and alloy for water, fuel, chemicals and process liquids, fabricated to your capacity and site.
Specifications
- Typical volume
- from around 1 m³ up to several thousand m³
- Typical design pressure
- atmospheric, up to around 0.1 barg for vented tanks
- Design temperature
- ambient up to around 200 °C, by material and wall thickness
Roof, bottom and nozzle layout configured to your drawing
Design code and inspection scope as specified by the buyer
Description
Storage Tanks: Fabricated Atmospheric Tanks
A storage tank holds liquid at or near atmospheric pressure until the process needs it. We fabricate tanks to your volume, liquid and footprint: shop-built for smaller sizes, or cut, rolled and welded in sections and erected on site for large diameters. Material, wall thickness, roof and nozzle layout are set by the liquid, temperature and the code you specify.
Tank Types
- Vertical cylindrical tank: flat or sloped bottom with a fixed cone or dome roof, for the largest volumes on a small footprint.

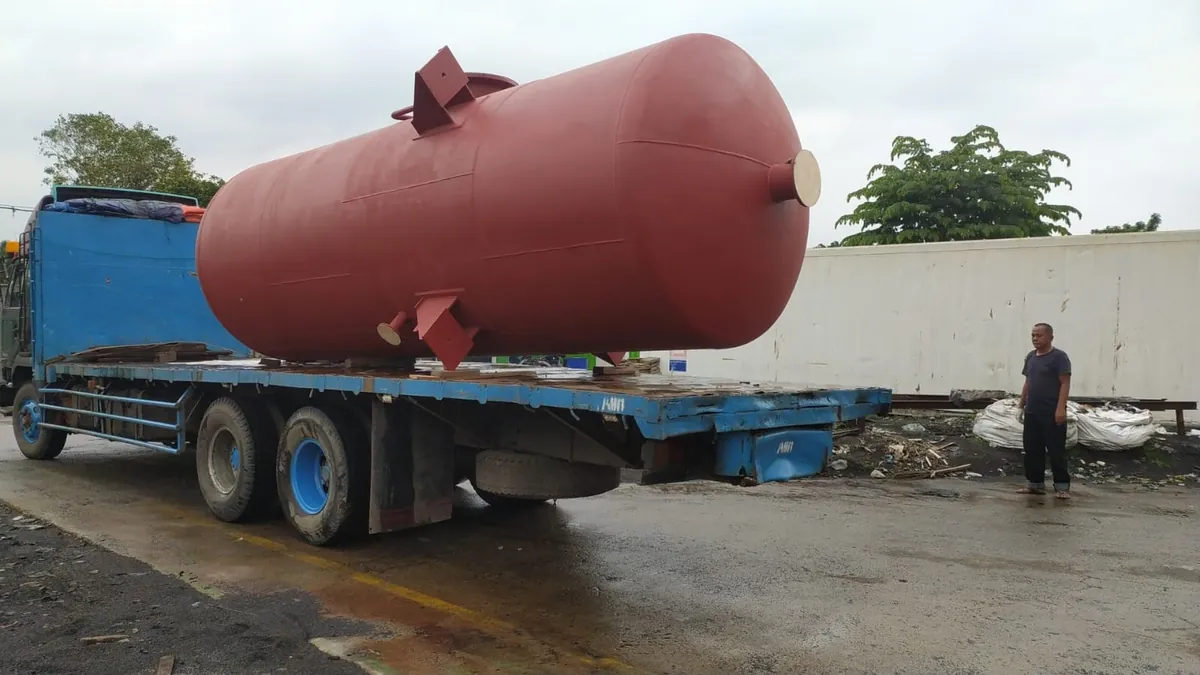

- Horizontal tank: cylindrical shell on saddles with dished or flat heads, for fuel, oil and day-tank duty and where headroom is limited.
- Open-top and floating-roof tanks: for water, effluent and liquids where vapour control or evaporation loss matters.
- Insulated and jacketed tanks: with insulation, heating coils or a jacket for liquids that must stay hot or cool.
Core Components
- Shell and bottom: rolled plate welded in courses, with the plate thickness stepped by height for tall tanks.
- Roof: cone, dome or flat, with roof manway, vent and gauge hatch.
- Nozzles and fittings: inlet, outlet, drain, overflow, level gauge and instrument connections, flanged to your standard.
- Access and supports: shell manway, ladder, platform, handrail, lifting lugs, saddles or legs.
- Surface protection: blasting and coating, or an internal lining for corrosive liquids, see rubber lining and FRP lining.
Inspection and Testing
Weld seams are inspected visually and, where the specification calls for it, by NDT, and the tank is tested for leaks by water fill or vacuum box. Inspection and documents are agreed in the quotation.
Features
- Fabricated to your volume, liquid and footprint
- Shop-built or site-erected to suit tank size
- Carbon steel, stainless steel and alloy options
- Insulated, jacketed and heated versions
- Nozzle, manway and platform layout to your drawing
- Internal lining or coating for corrosive liquids
Applications
- Process water, raw water and fire water storage
- Fuel, diesel and lubricating oil day tanks
- Chemical, acid and caustic storage
- Palm oil, CPO and edible oil plants
- Boiler feed, condensate and cooling water
- Effluent and wastewater holding
Materials
- Carbon steel plate
- Stainless steel 304 / 316
- Duplex stainless and alloy plate on request
- Internal rubber, FRP or PTFE lining for corrosive duty
- Epoxy or polyurethane external coating
Storage Tank: common questions
Where is Storage Tank used?
Process water, raw water and fire water storage; Fuel, diesel and lubricating oil day tanks; Chemical, acid and caustic storage; Palm oil, CPO and edible oil plants; Boiler feed, condensate and cooling water; Effluent and wastewater holding.
What materials are available for Storage Tank?
Carbon steel plate; Stainless steel 304 / 316; Duplex stainless and alloy plate on request; Internal rubber, FRP or PTFE lining for corrosive duty; Epoxy or polyurethane external coating.
What do you need to quote Storage Tank?
Liquid stored, its density and temperature; Volume, diameter and height, or the footprint available; Vertical or horizontal, roof type and nozzle list; Material, lining or coating, and design code; Site location, erection needs and delivery date.
Who supplies Storage Tank in Indonesia?
PT Misuba Guna Indonesia supplies Storage Tank to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
