Paper & Tissue
Tissue Machine
Crescent former tissue machines with Yankee dryer, hood and pope reel for facial tissue, toilet rolls, napkins and kitchen towels.
Specifications
- Forming
- crescent former, twin wire
- Speed
- up to 1,500 m/min
- Basis weight
- 13–35 GSM
- Capacity
- 100+ TPD per line
- Yankee cylinder
- 12–16 ft diameter, paper width up to 4,500 mm
Enquire for a tailored technical proposal
Description

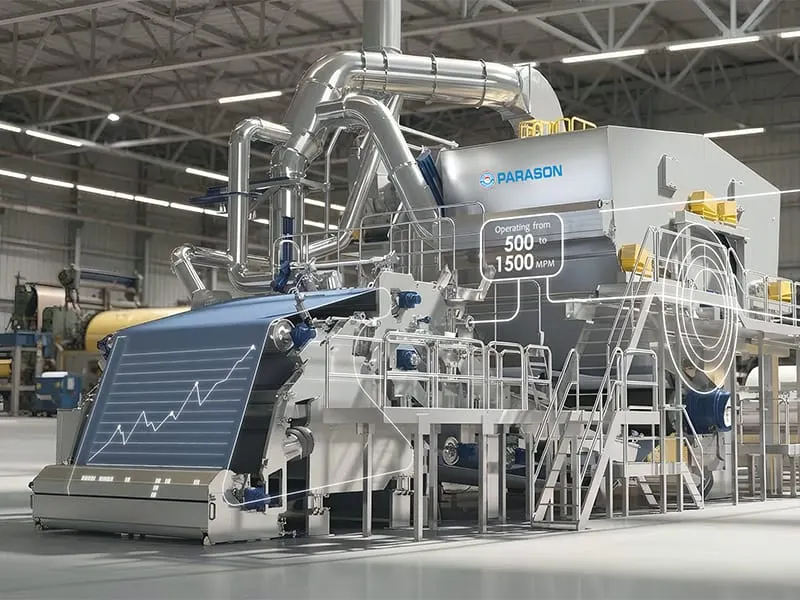

Crescent Former Tissue Machines
Our tissue machines use crescent former technology to deliver the softness, bulk and absorbency that consumers expect. The scope covers the full line from headbox to reel, together with stock preparation and process automation.
Main Equipment
- Hydraulic headbox: optimised jet-to-wire ratio for uniform stock distribution, consistent formation and better softness.
- Crescent former: stock is jetted into the nip between the outer forming wire and the felt wrapped around the forming roll, so the sheet is formed, dewatered and carried on the felt in one step. With no separate pickup felt there are fewer spares and less downtime. Load-cell tension control and felt conditioning showers keep forming stable across the speed range.
- Wire section: ceramic elements and efficient dewatering for long wire life.
- Suction press roll: removes water ahead of the Yankee and transfers the sheet, with a rubber-covered shell for high dryness and bulk retention.
- Yankee cylinder: cast iron or fabricated steel, 12–16 ft in diameter, with an FEA-optimised shell, a precision-ground face for even coating and creping, a calculated thermal crown and siphon condensate removal. Expect roughly 3–5% steam savings compared with conventional cylinders.
- Yankee hood: high-velocity hot air impingement for fast drying and energy savings.
- Creping doctor: precise blade positioning and oscillation for even creping and softness.
- Pope reel: gentle pneumatic loading that preserves bulk and builds consistent parent rolls.
- Quality control system: real-time basis weight and moisture measurement to hold quality and reduce waste.
- Felt and wire stretchers: pneumatic, auto-controlled tensioning to extend fabric life.
Features
- Crescent forming for high bulk, softness and absorbency
- Optimised headbox for uniform formation
- Fast, energy-efficient drying with hot air hood
- Consistent creping and sheet quality
- Bulk-preserving reel and winding
- Integrated stock preparation and process automation
Applications
- Facial tissue
- Toilet tissue
- Napkins
- Kitchen towels and hand towels
Materials
- Stainless steel headbox and wetted surfaces
- Cast iron or steel Yankee cylinder
- Ceramic wire-section elements
- Rubber-covered suction press roll
Tissue Machine: common questions
Where is Tissue Machine used?
Facial tissue; Toilet tissue; Napkins; Kitchen towels and hand towels.
What materials are available for Tissue Machine?
Stainless steel headbox and wetted surfaces; Cast iron or steel Yankee cylinder; Ceramic wire-section elements; Rubber-covered suction press roll.
What do you need to quote Tissue Machine?
Tissue grade (toilet, facial, napkin, towel) and gsm; Target capacity (t/day), width and speed; Raw material and fibre mix; Site, energy source and layout limits; Project timeline.
Who supplies Tissue Machine in Indonesia?
PT Misuba Guna Indonesia supplies Tissue Machine to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Tissue Machine?
Send your operating conditions and quantity. Our sales team will check the details and quote.
