Thermal Systems
Oil Cooler
Shell and tube and air-cooled oil coolers for hydraulic, lubrication, gearbox and engine oil systems.
Specifications
- Typical oil working pressure
- up to 16–25 bar, higher by design
- Typical oil temperature
- up to about 120 °C
- Cooling water
- typically up to 32–35 °C inlet
- Heat duty
- from a few kW to several hundred kW
Duty, flow, ports and mounting configured to your system
Description
Industrial Oil Coolers: Water-Cooled & Air-Cooled
Oil that runs too hot thins out, oxidizes and wears the machine it is supposed to protect. An oil cooler holds hydraulic, lube and gearbox oil inside its working temperature, extending oil life and keeping viscosity, pressure and bearing life where they should be.
Cooler Types
- Water-cooled shell and tube: oil on the shell side, cooling water through the tubes. Compact and efficient where cooling water is available.
- Air-cooled: oil through a finned core with a fan, so no cooling water is needed. Suited to mobile, remote and water-scarce sites.
- Plate type: brazed or gasketed plates for the most compact water-cooled solution on clean oil.
Selecting a Cooler
- Heat load to remove, from the power loss of the hydraulic or lube system.
- Oil type and viscosity, flow rate and maximum allowable pressure drop.
- Oil inlet temperature and the target outlet temperature.
- Cooling water or ambient air temperature at the site.
- Working pressure, with relief or bypass protection where flow can surge.
Retrofits
We can supply coolers to match existing mounting, connections and capacity. Send the old unit nameplate or the system data, and we will propose a replacement or an upgrade.
Features
- Water-cooled and air-cooled options for any site
- Compact designs for crowded machine rooms and mobile equipment

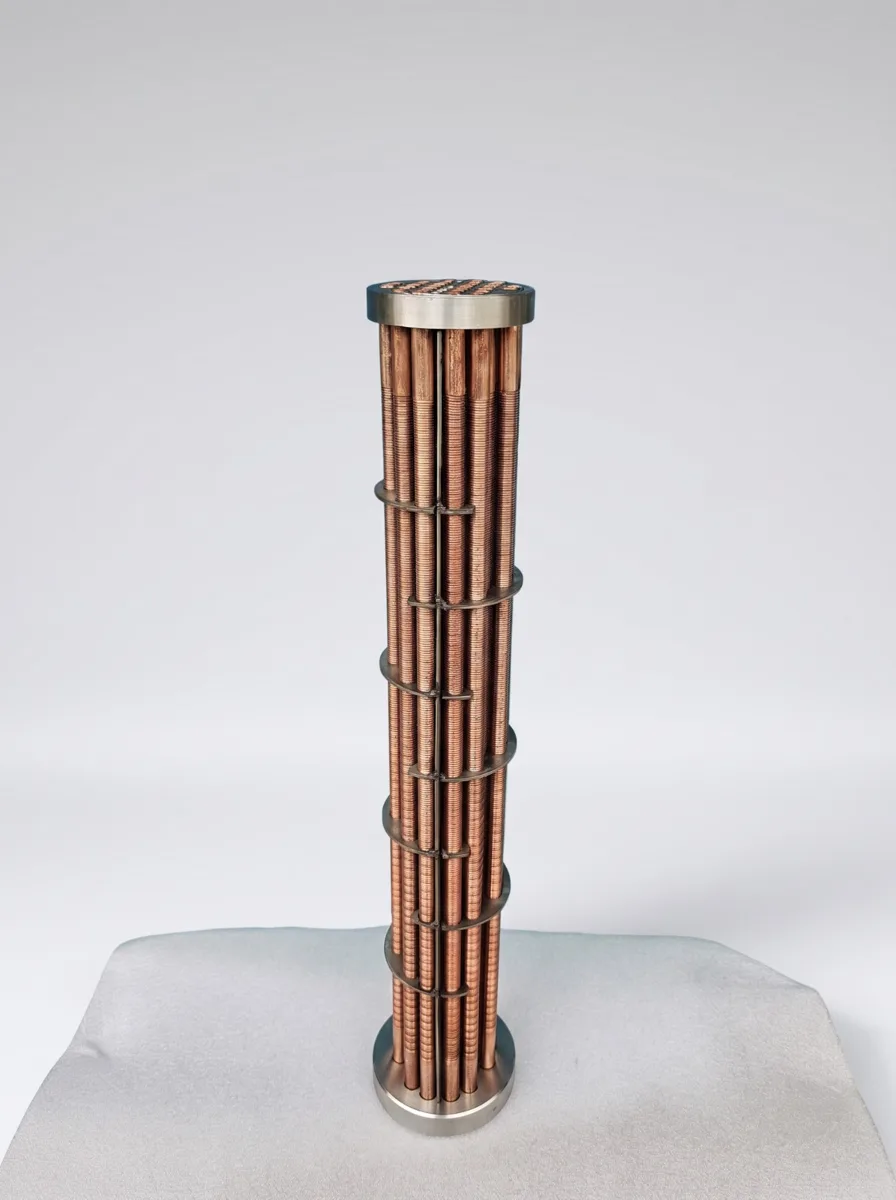

- Removable tube bundles on larger shell and tube units
- Integral low-fin copper tubes for more heat transfer on the oil side
- Materials selected for oil, cooling water and sea-water duty
- Replacement coolers matched to existing mounting and ports
- Pressure tested before dispatch
Applications
- Hydraulic power units and presses
- Gearbox and bearing lubrication systems
- Compressor and turbine oil circuits
- Diesel engine and generator set oil cooling
- Injection molding machines and machine tools
- Marine and offshore machinery
Materials
- Copper or cupronickel tubes for general duty
- Stainless steel 304/316 or titanium for corrosive water
- Aluminium finned cores for air-cooled units
- Carbon steel or cast iron shell and end covers
- Oil-resistant gaskets and O-rings
Oil Cooler: common questions
Where is Oil Cooler used?
Hydraulic power units and presses; Gearbox and bearing lubrication systems; Compressor and turbine oil circuits; Diesel engine and generator set oil cooling; Injection molding machines and machine tools; Marine and offshore machinery.
What materials are available for Oil Cooler?
Copper or cupronickel tubes for general duty; Stainless steel 304/316 or titanium for corrosive water; Aluminium finned cores for air-cooled units; Carbon steel or cast iron shell and end covers; Oil-resistant gaskets and O-rings.
What do you need to quote Oil Cooler?
Oil type, flow rate and inlet and target outlet temperatures; Cooling medium (water or air) and its temperature; Equipment served: gearbox, hydraulic, turbine or transformer; Connection size and space limits; Quantity and delivery location.
Who supplies Oil Cooler in Indonesia?
PT Misuba Guna Indonesia supplies Oil Cooler to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Oil Cooler?
Send your operating conditions and quantity. Our sales team will check the details and quote.
