Paper & Tissue
Complete Paper Machine
Turnkey paper machines from headbox to pope reel for kraft, board, writing, printing and specialty grades, up to 1,200 TPD and 1,200 m/min.
Specifications
- Capacity
- 30–1,200 TPD
- Design speed
- up to 1,200 m/min
- Deckle width
- up to 10 m
- Basis weight
- 50–120 GSM
- Wire configuration
- single, double, triple, four or multi-wire
- Shoe press
- 200–300 mm nip, line load up to 1,200 kN/m
Description
Complete Paper Machine Lines
We design and supply complete paper machine lines for kraft, board, writing, printing, newsprint and specialty grades, as well as individual sections and rebuilds for existing machines. Each line is configured to the grade, capacity and fiber furnish of the mill.
Machine Sections
- Headbox: hydraulic or pressurized designs with turbulence generation, cross-direction basis weight control and quick grade changes. The pressurized type uses an air cushion for high-speed operation.
- Wire section: Fourdrinier forming with table rolls, hydrofoils and suction boxes for even drainage, in single, double, triple, four or multi-wire layouts.

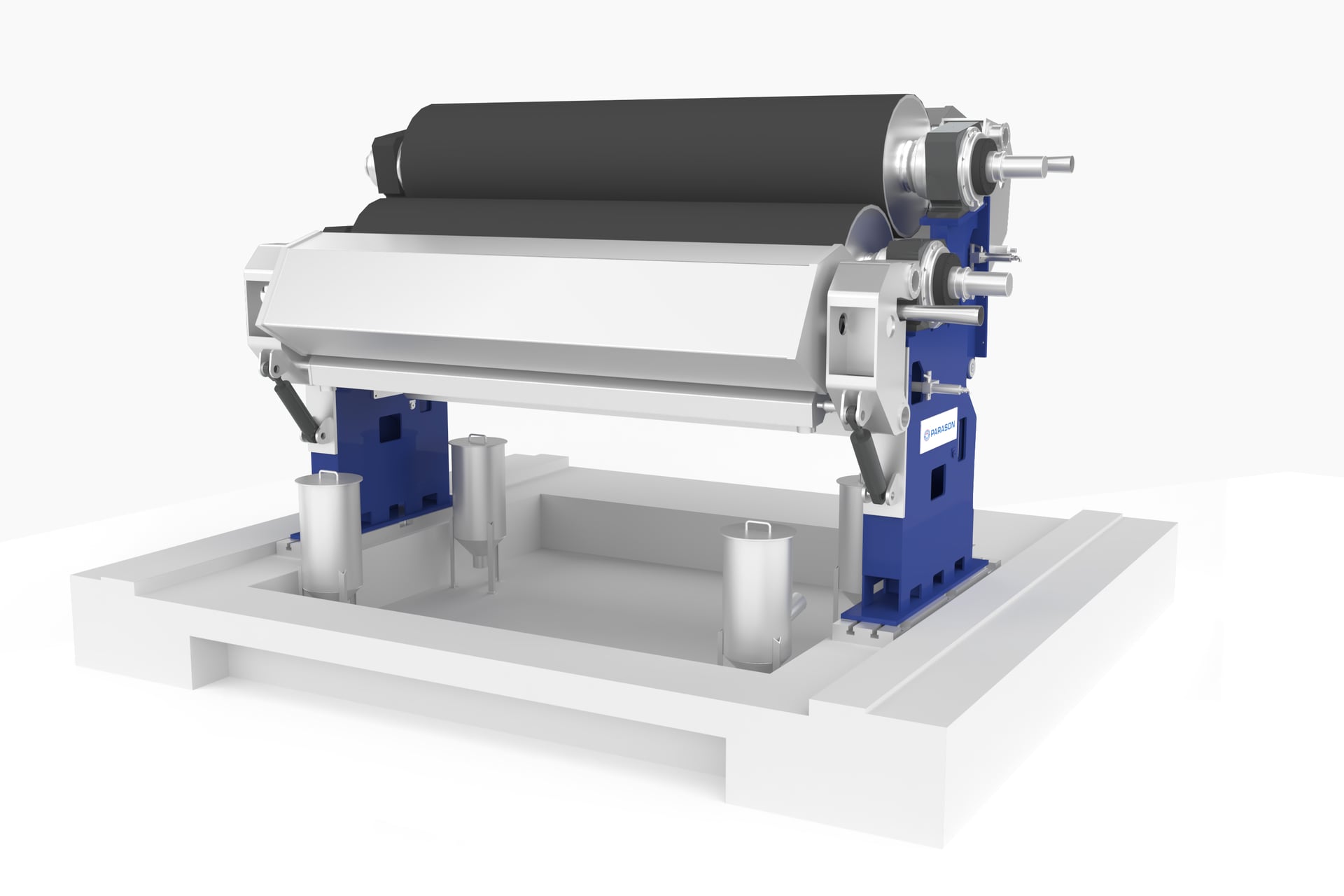

- Press section: H-frame multi-nip presses with optimised nip geometry, or a shoe press with a 200–300 mm extended nip. In the shoe press a fixed beam with hydraulic cylinders loads a flexible blanket running on an oil film, and zoned loading trims the cross-direction moisture profile. Gentle, progressive pressing raises exit dryness while keeping bulk, cutting dryer steam by around 15–20%.
- Dryer section: multi-cylinder pre-dryers with pocket ventilation for even moisture removal before sizing, and single-tier post-dryers that hold the sheet flat and control curl. Cylinders are precision-machined cast iron for uniform heat transfer and long service life.
- Surface treatment: film press for metered sizing and coating with low chemical consumption.
- Finishing: multi-nip machine calender with variable crown rolls for smoothness and caliper control.
- Controls and winding: a quality control system measures basis weight, moisture and caliper online and corrects the profiles, and a pope reel with pneumatic loading changes spools automatically without slowing the machine.
Grades by Wire Configuration
- Single wire: specialty grades, tissue, light and regular kraft
- Double wire: kraft and white top liner kraft
- Triple wire: kraft, duplex board and white top liner kraft
- Four or multi-wire: kraft, duplex, HWC/SVS duplex, art card, folding boxboard and multilayer high-burst-factor kraft
- Tissue and poster grades: produced on a dedicated tissue machine
Rebuilds & Upgrades
Existing machines can be modernised with capacity increases, press and dryer rebuilds, headbox replacement, grade conversion, energy-saving retrofits and runnability improvements, often at far lower cost than a new line.
Spare & Wear Parts
OEM-compatible spare and wear parts are available for paper machines of any make and model, together with replacement refiner plates and screen baskets. Send the machine make, type and part details for a quotation.
Features
- Single-source supply from approach flow to pope reel
- Complete turnkey line or individual sections
- Uniform basis weight profile through cross-direction control
- Shoe press option for higher dryness and lower steam use
- Configurations from single wire to multi-wire for different grades
- Rebuild and upgrade programmes for older machines
- Spare and wear parts for paper machines of any make
Applications
- Kraft liner, testliner and fluting medium
- Duplex board, folding boxboard and art card
- Writing, printing and newsprint grades
- Specialty papers
Materials
- Stainless steel headbox flow channels
- Ceramic wire-section dewatering elements
- Cast iron dryer cylinders built to pressure vessel standards
- Structural steel frame with protective coating
Complete Paper Machine: common questions
Where is Complete Paper Machine used?
Kraft liner, testliner and fluting medium; Duplex board, folding boxboard and art card; Writing, printing and newsprint grades; Specialty papers.
What materials are available for Complete Paper Machine?
Stainless steel headbox flow channels; Ceramic wire-section dewatering elements; Cast iron dryer cylinders built to pressure vessel standards; Structural steel frame with protective coating.
What do you need to quote Complete Paper Machine?
Paper grade and basis weight range (gsm); Target capacity (t/day), trim width and speed; Raw material: recycled, virgin or mixed; Site, utilities (steam, power) and building limits; Project timeline.
