Stock Preparation
High-Consistency Pulper
Helical-rotor batch pulper running at 15–16% consistency, with the drum pulpers, dilution pulpers and reject-handling equipment that make up a complete waste paper pulping section.
Specifications
- Batch pulper capacity
- 8–700 TPD across the model range
- Operating consistency
- 15–16% (batch pulper), 15–18% (drum pulper)
- Batch discharge consistency
- approx. 4%
- Drive
- integrated gearbox or belt-and-pulley
- Dilution pulper screen plate
- 6–8 mm drilled holes
- Virgin pulper
- 4–5% consistency, 12–16 mm plates
- Drum pulper net energy
- approx. 15–25 kWh/t
Sizes, capacity and drive power configured to plant capacity
Description
High-Consistency Batch Pulper & Pulping Line
The high-consistency batch pulper turns recovered paper into slurry at 15–16% consistency. A helical rotor generates intense fiber-to-fiber friction, so fibers separate efficiently while plastics, films and other contaminants stay in large pieces that are easy to remove. We supply it as part of a full pulping section, from bale breaking to reject disposal.
How the Batch Pulper Works
- Loading: recovered paper is charged into the vat as a batch.
- Slushing: the helical rotor circulates the stock at 15–16% consistency, so fibers rub against each other rather than against the rotor.
- Separation: fibers are released while plastics, wire and other contaminants stay whole.
- Dilution and discharge: the batch is diluted to about 4% and pumped out, ready for the next charge.
Rotor and Drive

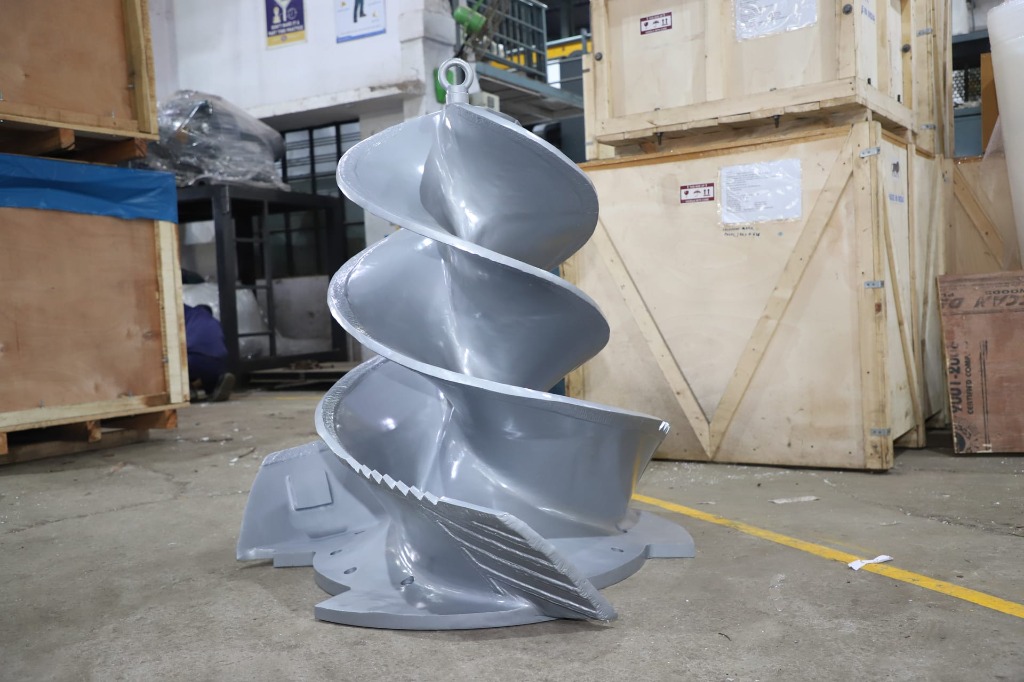

The cast helical rotor is made from tough, wear-resistant stainless steel, computer balanced and machined for zero eccentricity, with hardened edges for even slushing and long life. Two drives are available: a compact integrated gearbox, or a belt-and-pulley drive that is simpler to maintain and allows the rotor speed to be changed.
The Pulping Section
- Bale breaker: loosens tightly pressed bales and separates hard impurities before pulping, protecting downstream equipment.
- Drum pulper: gentle slushing of recovered paper at 15–18% consistency, removing easily separated fines early at roughly 15–25 kWh per tonne.
- Dilution pulper: works with the batch pulper, removing plastics through 6–8 mm drilled plates while diluting stock for transfer, so the next batch can start straight away.
- Low-consistency offset and D-type pulpers: double-cone and D-rotor designs for intensive slushing with integrated removal of coarse rejects.
- Ragger, rope cutter and grapple: continuous removal of plastic film, textiles and wire as a rope, with sized cutting and periodic extraction of heavy rejects from the sump.
- Fiber saver and trommel screens: de-trashing that removes up to 70% of contaminants while limiting fiber loss.
- Reject compacter: screw press that dewaters and compacts rejects to cut disposal volume and cost.
Special-Duty Pulpers
- Under-machine pulper for immediate recycling of wet broke and dry trim.
- Continuous pulper for cup stock and carton packaging, separating polyethylene and aluminium from the fiber.
- High-torque pulper for wet-strength grades, separating fiber from plastic, film and aluminium.
- Low-consistency virgin pulper for white grades at 4–5% consistency with 12–16 mm screen plates.
Features
- Helical rotor delivers efficient defibering at 15–16% consistency with high fiber yield
- Good ink detachment for deinking writing and printing grades
- High-consistency pulping uses less water and power per tonne
- Contaminants are kept intact for simple removal in coarse screening
- Dilution pulper frees the batch pulper to start the next batch immediately
- Ragger and rope cutter provide continuous removal of film, textiles and wire
- Reject compacter reduces the volume and cost of disposal
- Models for wet-strength, cup stock, virgin and broke pulping
Applications
- Recycled packaging paper lines using old corrugated containers and mixed waste
- Deinking lines for writing, printing and tissue grades
- Wet-strength and carton packaging recycling
- Broke and trim recovery directly beneath the paper machine
Materials
- Stainless steel wetted vat and fittings
- Cast stainless helical rotor with hard-faced edges
- Drilled stainless extraction and screen plates
- Heavy-duty bearings and drive shaft
High-Consistency Pulper: common questions
Where is High-Consistency Pulper used?
Recycled packaging paper lines using old corrugated containers and mixed waste; Deinking lines for writing, printing and tissue grades; Wet-strength and carton packaging recycling; Broke and trim recovery directly beneath the paper machine.
What materials are available for High-Consistency Pulper?
Stainless steel wetted vat and fittings; Cast stainless helical rotor with hard-faced edges; Drilled stainless extraction and screen plates; Heavy-duty bearings and drive shaft.
What do you need to quote High-Consistency Pulper?
Raw material (OCC, waste paper, virgin pulp) and contaminant level; Required capacity (t/day) and consistency; Batch or continuous operation; Existing line layout and power supply; Site location and timeline.
