Conveyor
Scraper Conveyor
Scraper chain conveyors and submerged scraper conveyors for ash, clinker, slag and abrasive bulk solids, built heavy for continuous duty.
Specifications
- Typical capacity
- from a few t/h up to around 100 t/h
- Chain speed
- typically 0.05–0.3 m/s, slower for submerged duty
- Inclination
- discharge sections up to around 35°
- Material temperature
- submerged type for hot ash and slag from the boiler
Trough width, chain size and length configured to your duty
Description
Scraper Conveyors for Ash, Clinker and Bulk Solids
A scraper conveyor pulls material along a trough with scraper flights fixed to heavy-duty chain. It is the workhorse for hot, wet, abrasive and lumpy material that would damage a belt, from boiler bottom ash and clinker to slag and coal. We build it heavy, with replaceable liners where the wear happens.
Conveyor Types
- Scraper chain conveyor: scrapers on twin chains pull material along an open or covered trough. For coal, clinker, wood chips and abrasive solids.
- Submerged scraper conveyor (SSC): runs under a water bath below the boiler, quenching and removing hot bottom ash and slag continuously.
- Inclined discharge section: lifts and dewaters material before it drops to a truck, bunker or belt.
Core Components
- Chain: round-link or forged chain in hardened alloy steel.

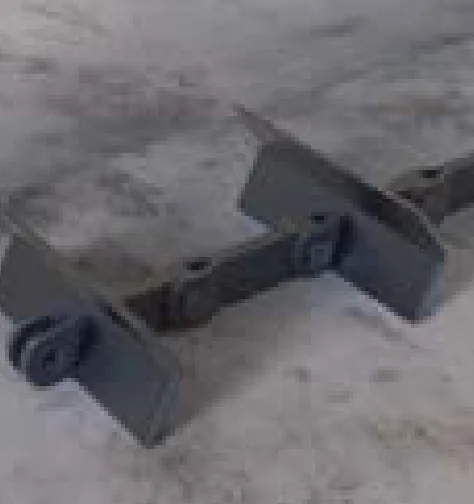

- Scraper flights: steel flights sized to the trough and material.
- Trough: mild steel or AR steel, with cast basalt or ceramic liners for the most abrasive duties.
- Drive and take-up: gear motor with overload protection and hydraulic or screw take-up.
Spares and Retrofits
Chain, flights, sprockets and trough liners can be supplied as replacements, see conveyor spare and wear parts. For worn troughs, our ceramic lining extends wear life.
Features
- Heavy-duty chain and flights for continuous duty
- Handles hot, wet, lumpy and abrasive material
- Submerged design quenches and removes boiler ash in one step
- Replaceable trough liners in AR steel, basalt or ceramic
- Overload protection on the drive
- Built to replace existing conveyors on the same footprint
Applications
- Boiler bottom ash and slag removal
- Coal and biomass fired power plants
- Cement clinker and kiln dust
- Steel plant slag and scale
- Palm oil mill boiler ash and fibre
- Mining and mineral processing
Materials
- Mild steel or AR steel trough
- Hardened alloy steel round-link or forged chain
- Steel scraper flights
- Cast basalt, ceramic or UHMW-PE liners
- Hardened or segmented sprockets
Scraper Conveyor: common questions
Where is Scraper Conveyor used?
Boiler bottom ash and slag removal; Coal and biomass fired power plants; Cement clinker and kiln dust; Steel plant slag and scale; Palm oil mill boiler ash and fibre; Mining and mineral processing.
What materials are available for Scraper Conveyor?
Mild steel or AR steel trough; Hardened alloy steel round-link or forged chain; Steel scraper flights; Cast basalt, ceramic or UHMW-PE liners; Hardened or segmented sprockets.
What do you need to quote Scraper Conveyor?
Material handled, bulk density and lump size; Capacity (t/h) and material temperature; Conveying length, lift height or layout drawing; Site location and quantity.
Who supplies Scraper Conveyor in Indonesia?
PT Misuba Guna Indonesia supplies Scraper Conveyor to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
-
-
