Conveyor
Chain Conveyor
Enclosed drag chain and en-masse chain conveyors for moving bulk solids horizontally or on an incline, with multiple inlets and outlets in one dust-tight casing.
Specifications
- Typical capacity
- from a few t/h up to several hundred t/h
- Typical length
- up to around 100 m per conveyor
- Chain speed
- typically 0.2–0.5 m/s
- Inclination
- up to around 15° as standard, steeper by design
Trough width, chain type and drive configured to your duty
Description
Chain Conveyors: Drag Chain and En-Masse Type
A chain conveyor drags bulk material along an enclosed trough with flights fixed to one or two strands of chain. The whole bed of material moves together, so the conveyor handles hot, abrasive and dusty material in a sealed casing and can be fed and emptied at several points along its length.
Conveyor Types

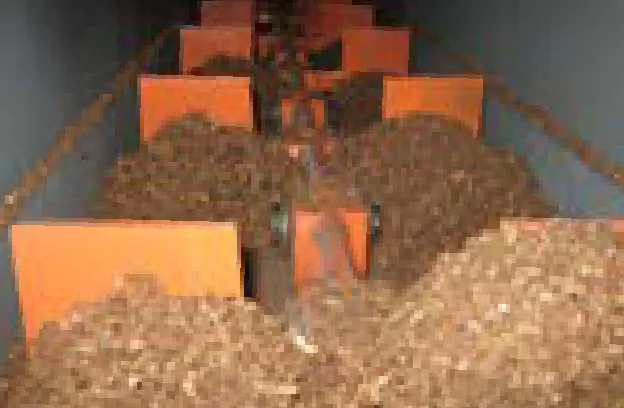

- Drag chain conveyor: flights on a single or double chain drag material along the trough floor. Robust and simple, for coal, ash, clinker and wood chips.
- En-masse conveyor: skeleton flights move a deep, continuous bed of material at low speed. Gentle on the product and low on wear, for grain, meal, pellets and cement.
- Horizontal, inclined and L-path layouts: straight runs, inclines and horizontal-to-vertical sections to fit the plant.
Core Components

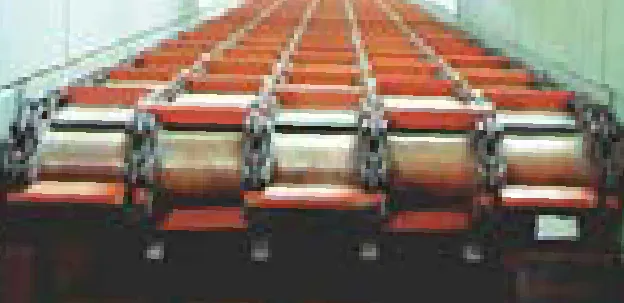

- Chain and flights: forged or welded chain with steel or UHMW-PE flights sized to the material.
- Trough casing: bolted, dust-tight casing with replaceable wear liners on the floor.
- Drive and tail: drive sprocket with gear motor, tail sprocket with screw take-up.
- Inlets and outlets: several feed points and slide-gate outlets along the length.
Spares and Retrofits
Chains, sprockets, flights and trough liners are the wear items. See conveyor spare and wear parts for replacements.
Features
- Fully enclosed, dust-tight casing
- Multiple inlets and outlets on one conveyor
- Handles hot, abrasive and dusty material
- Low speed operation for low wear and gentle handling
- Horizontal, inclined and L-path layouts
- Replaceable trough liners and flights
Applications
- Cement and clinker plants
- Grain silos, feed mills and storage terminals
- Coal, bottom ash and fly ash handling in power plants
- Biomass, wood chip and palm fibre boiler feed
- Chemical, fertilizer and mineral processing
Materials
- Mild steel, stainless steel or abrasion-resistant steel casing
- Forged or welded alloy steel chain
- Steel or UHMW-PE flights
- Hardened sprockets with replaceable segments
- Replaceable floor liners in AR steel, UHMW-PE or cast basalt
Chain Conveyor: common questions
Where is Chain Conveyor used?
Cement and clinker plants; Grain silos, feed mills and storage terminals; Coal, bottom ash and fly ash handling in power plants; Biomass, wood chip and palm fibre boiler feed; Chemical, fertilizer and mineral processing.
What materials are available for Chain Conveyor?
Mild steel, stainless steel or abrasion-resistant steel casing; Forged or welded alloy steel chain; Steel or UHMW-PE flights; Hardened sprockets with replaceable segments; Replaceable floor liners in AR steel, UHMW-PE or cast basalt.
What do you need to quote Chain Conveyor?
Material handled, bulk density and lump size; Capacity (t/h) and material temperature; Conveying length, lift height or layout drawing; Site location and quantity.
Who supplies Chain Conveyor in Indonesia?
PT Misuba Guna Indonesia supplies Chain Conveyor to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
-
-
