Fabrication
Storage tanks and pressurized tanks fabricated in carbon steel, stainless steel and alloy, plus machined pinion, worm and rack gears, all made to your drawing or duty.
Some equipment cannot be bought off a shelf. Our fabrication range covers made-to-order vessels and gears: atmospheric storage tanks and pressurized tanks for liquids and gases, and pinion, worm and rack gear sets for drives, lifts and linear motion.
Each item is built to your drawing, sample or process duty, in the material and to the code you specify. Send a drawing, a worn part or a duty sheet and we quote the fabrication, machining, inspection and delivery together.
-
Vessels & Tanks

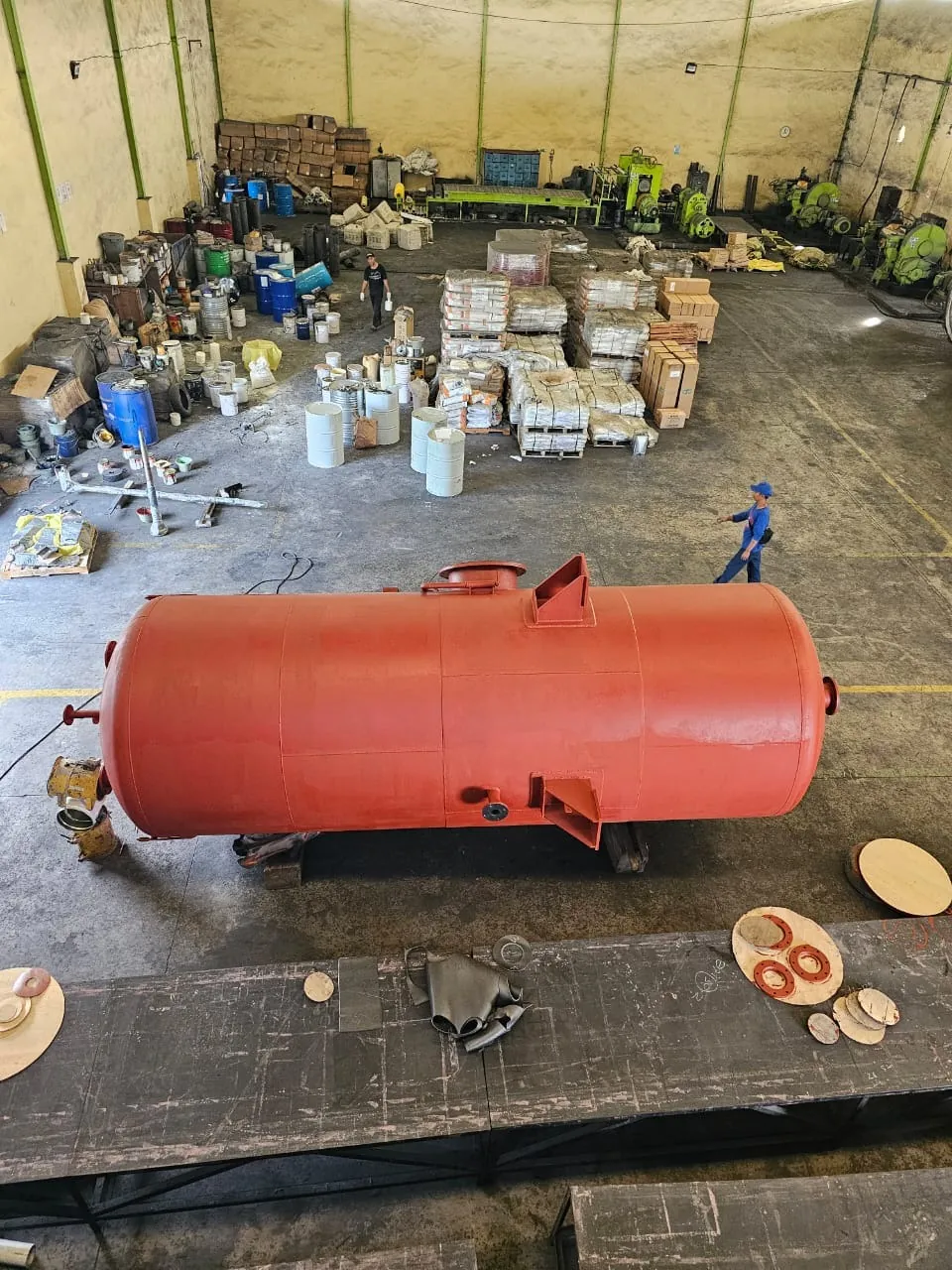

Storage Tank
Vertical and horizontal atmospheric storage tanks in carbon steel, stainless steel and alloy for water, fuel, chemicals and process liquids, fabricated to your capacity and site.
- Typical volume
- from around 1 m³ up to several thousand m³
- Typical design pressure
- atmospheric, up to around 0.1 barg for vented tanks
-
Vessels & Tanks

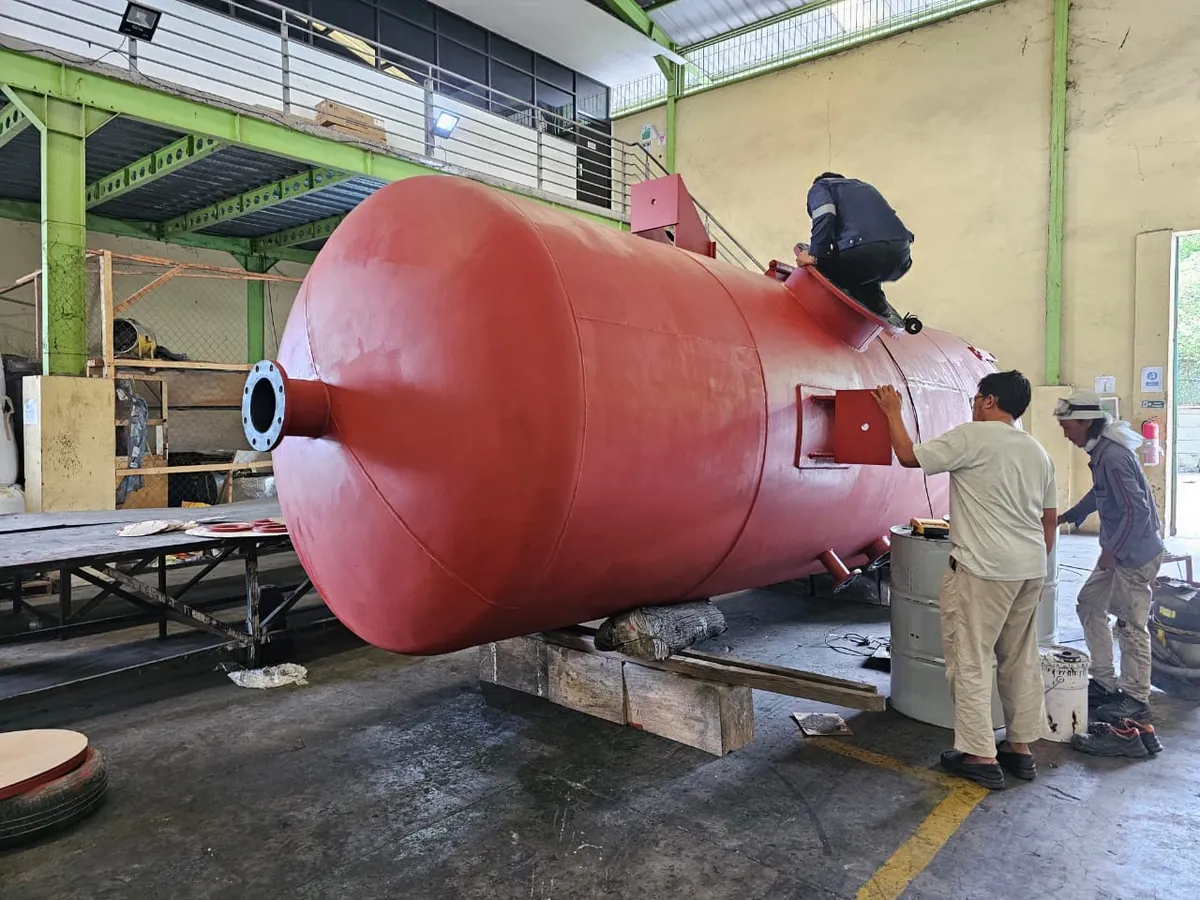

Pressurized Tank
Fabricated pressure vessels for air, steam, gas and process fluids, including air receivers, separators and reaction vessels, built to your design pressure, temperature and code.
- Typical volume
- from around 0.1 m³ up to several tens of m³
- Typical design pressure
- from low pressure up to around 40 barg, higher by design
-
Gears & Power Transmission
Pinion Gear
Spur and helical pinion gears and pinion shafts machined from forged or bar steel to your drawing or worn sample, for gearboxes, mill drives, kilns and heavy machinery.
- Typical module
- from around 1 up to 30 or more
- Typical outside diameter
- from a few tens of mm up to over 1 m
-
Gears & Power Transmission

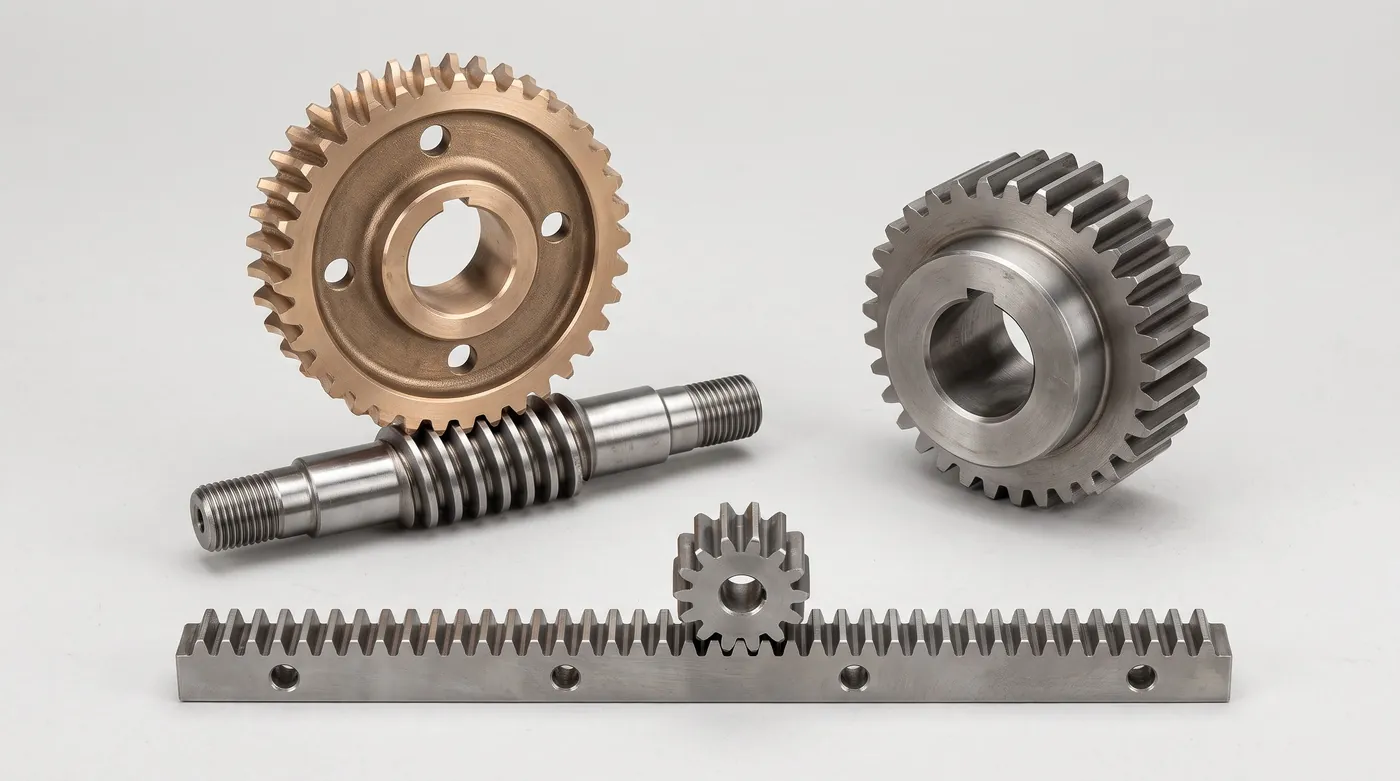

Worm and Rack Gear
Worm shafts, worm wheels and straight or helical gear racks machined to your drawing or worn sample, for lifting, slewing and linear drive systems.
- Typical module
- from around 1 up to 20
- Typical rack length
- made in sections up to around 3 m, butted to the length you need
Not sure which Fabrication product fits?
Send your flow, pressure, temperature and media. Our sales team will recommend a model and quote.
