Coupling
Rigid Coupling & Torque Limiter
JK clamp-shell rigid couplings, friction and ball-detent torque limiters that protect drives from overload, and the bell housings and brackets that mount pumps to motors.
Specifications
- Rigid coupling torque
- 25 – 15,000 N·m (JK)
- Torque limiter setting
- 2.9 – 1,860 N·m (TLC), 5 – 1,200 N·m (JTAL)
- Bell housings
- Motors 0.55 – 45 kW (PK aluminium)
- Bore range
- 6 – 210 mm
Description
Rigid couplings join aligned shafts with no flexibility; the JK clamp shell fits without moving either machine. Torque limiters slip (TLC friction type) or disengage (JTAL ball type) at a set torque to protect gearboxes and machines from jams. Bell housings and floor brackets align a hydraulic pump to its motor and enclose the coupling.
Applications
- Line shafts and agitators
- Conveyors and packaging lines
- Hydraulic power units
- Pump–motor sets
- Machine tools
- Automation equipment
Series in this range
6 series · dimension tables on request
-
JK

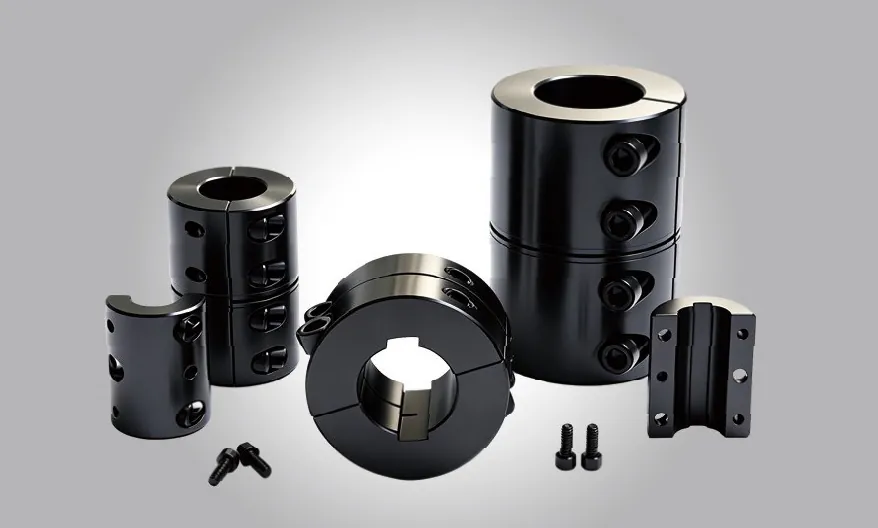

JK clamp-shell rigid coupling
Split shell clamped by bolts, JK-40 – JK-300.
- 25 – 15,000 N·m
- Bores to 210 mm
-
TLC

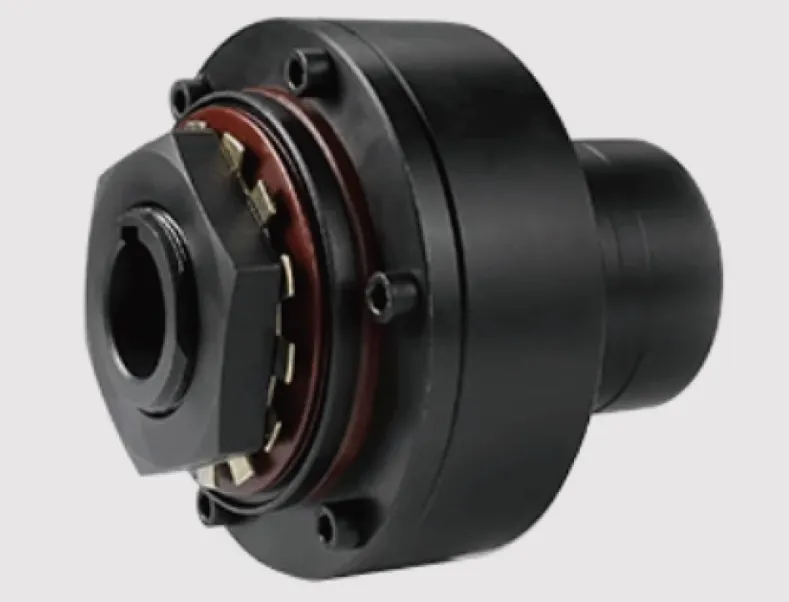

TLC friction torque limiter
Friction plates slip at an adjustable torque, TLC200 – TLC1024.
- 2.9 – 1,860 N·m
- Bores 6 – 90 mm
-
JTAL

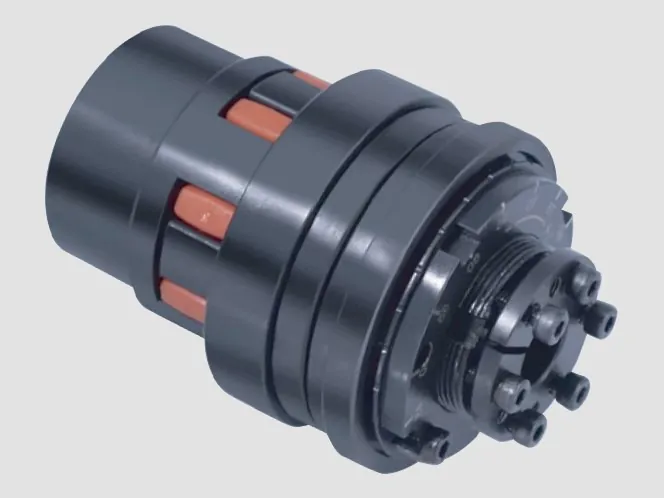

JTAL ball torque limiter
Steel-ball detent disengages on overload, sizes 01 – 06.
- 5 – 1,200 N·m
- Bores 8 – 80 mm
-
PK

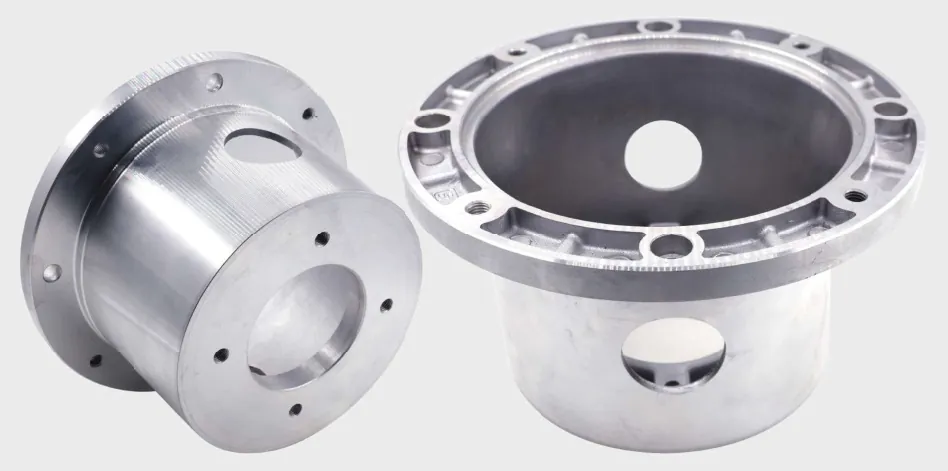

PK aluminium bell housing
Motor–pump bell housings PK140 – PK450.
- Motors 0.55 – 45 kW
-
DL

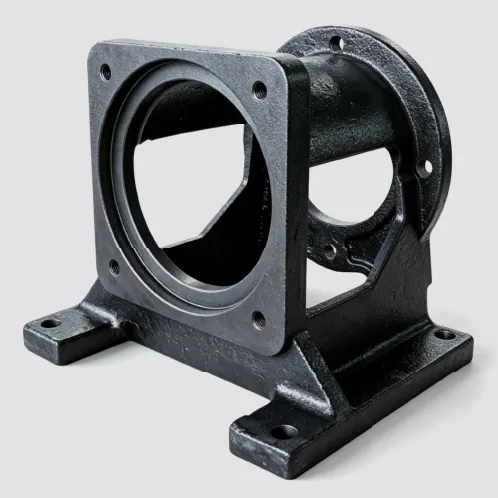

DL / DLK pump bracket
HT250 cast-iron floor-mounted pump brackets.
Ask for price and size: DL / DLK pump bracket -
DL-F

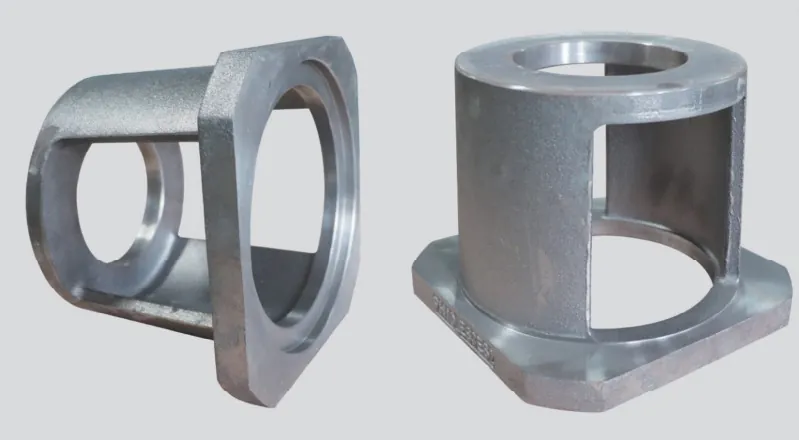

DL-F cast-iron bell housing
Cast-iron bell housings for flange-mounted pumps.
Ask for price and size: DL-F cast-iron bell housing
