Coupling

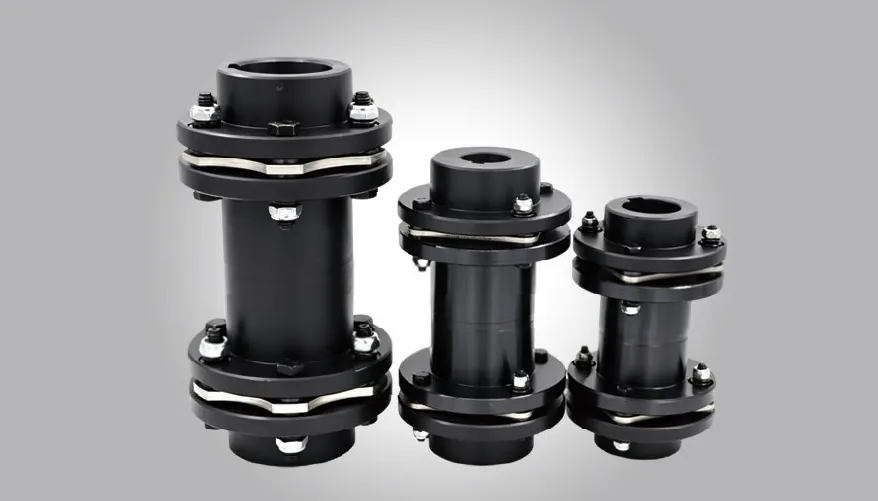

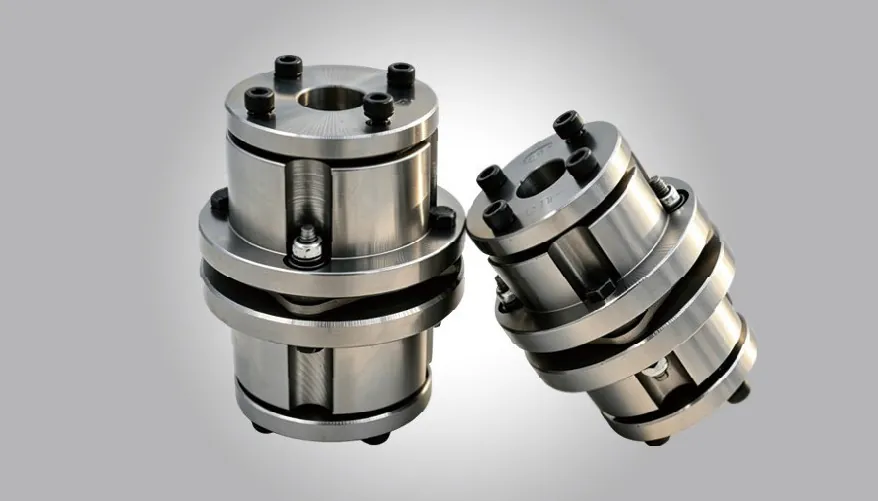

Disc Coupling
All-steel diaphragm couplings with stacked stainless disc packs: zero backlash, torsionally stiff and maintenance-free, rated to 280 °C.
Specifications
- Nominal torque
- 9.8 – 173,830 N·m
- Bore range
- 3 – 290 mm
- Flexible element
- Stainless spring-steel disc packs
- Temperature
- Up to 280 °C
Description
Disc couplings transmit torque through thin stainless spring-steel laminations bolted alternately to each hub. The flexing disc packs take misalignment with no sliding parts, so there is no backlash, no wear and no lubrication. DJM uses one disc pack; SJM uses two packs with a spacer to take parallel offset and leave room between shaft ends.
Applications
- Process pumps
- Compressors and blowers
- Turbines and generators
- Paper and steel mills
- Test rigs
- High-temperature drives
Series in this range
2 series · dimension tables on request
-

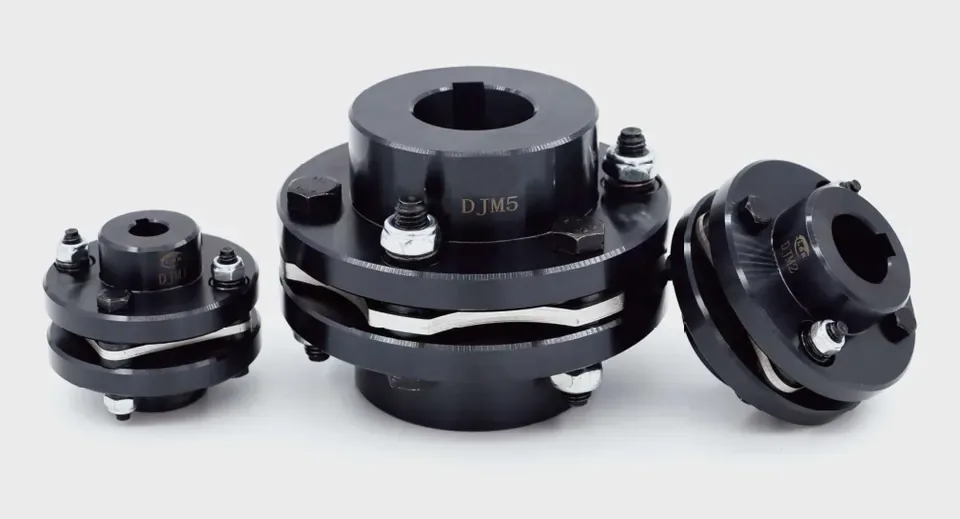

DJM
DJM single-disc coupling
One stainless disc pack between two hubs, DJM00 – DJM23.
- 9.8 – 173,830 N·m
- Bores 3 – 290 mm
-

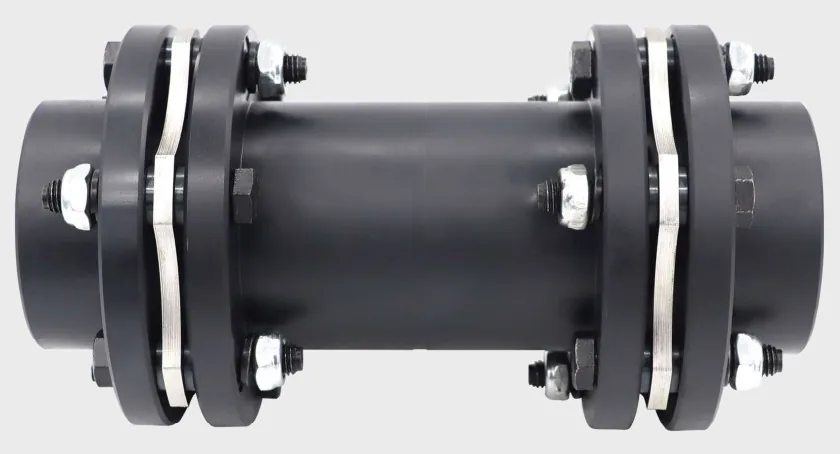

SJM
SJM double-disc spacer coupling
Two disc packs with a spacer, SJM00 – SJM14.
- 9.8 – 25,410 N·m
- Bores 3 – 155 mm
Disc Coupling: common questions
Where is Disc Coupling used?
Process pumps; Compressors and blowers; Turbines and generators; Paper and steel mills; Test rigs; High-temperature drives.
What do you need to quote Disc Coupling?
Size or dimensions (or a drawing); Operating pressure and temperature; Medium and operating conditions; Quantity and delivery location.
Who supplies Disc Coupling in Indonesia?
PT Misuba Guna Indonesia supplies Disc Coupling to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Disc Coupling?
Send your operating conditions and quantity. Our sales team will check the details and quote.
