Coupling

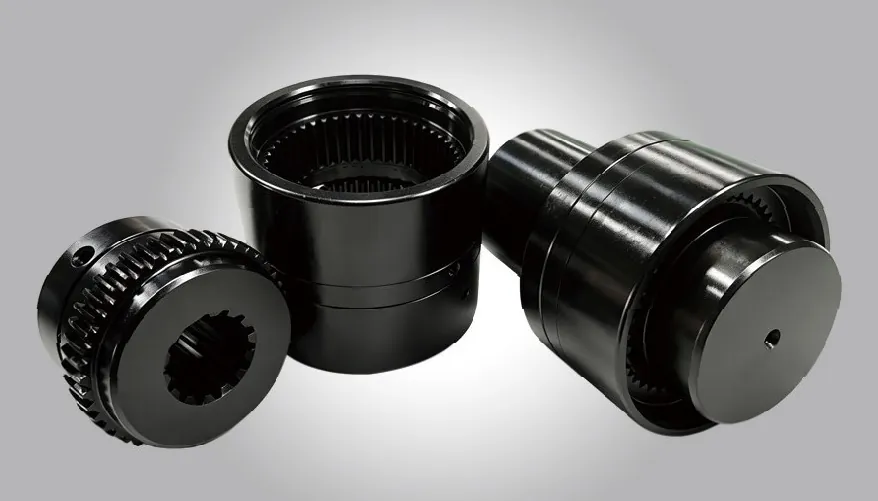

Gear Coupling
Crowned-tooth gear couplings, from maintenance-free nylon-sleeve NL and TGL types to all-steel TGCL and GIICL drum gear couplings for heavy torque.
Specifications
- Nominal torque
- 10 – 174,000 N·m
- Bore range
- 6 – 265 mm
- Sleeve
- Nylon (NL, TGL) or steel (TGCL, GIICL)
- Motor range (NL)
- 0.75 – 180 kW
Description
Two externally toothed hubs engage an internally toothed sleeve. Crowned teeth let the hubs tilt, so the coupling accepts angular, radial and axial misalignment while carrying high torque in a small diameter. Nylon sleeves run dry and quietly on light and medium drives; steel sleeves take the heavy, shock-loaded duty of mills, cranes and conveyors.
Features
- High torque for its outside diameter
- Crowned teeth accept angular, radial and axial offset
- Nylon sleeves need no lubrication and run quietly
- Steel sleeves take heavy and shock-loaded duty
- TGL flange version mounts to SAE engine flywheels
Applications
- Hydraulic pumps
- Electric motors and reducers
- Rolling mills
- Cranes and hoists
- Conveyors
- Engine-driven equipment
Series in this range
6 series · dimension tables on request
-
NL

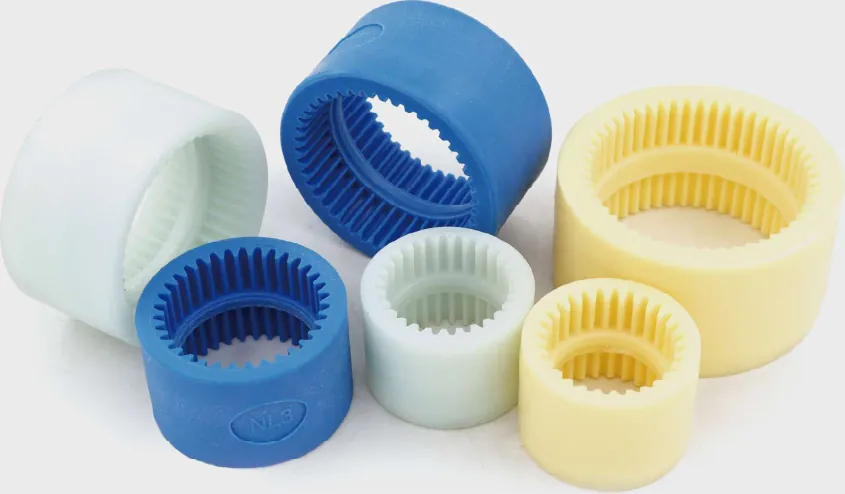

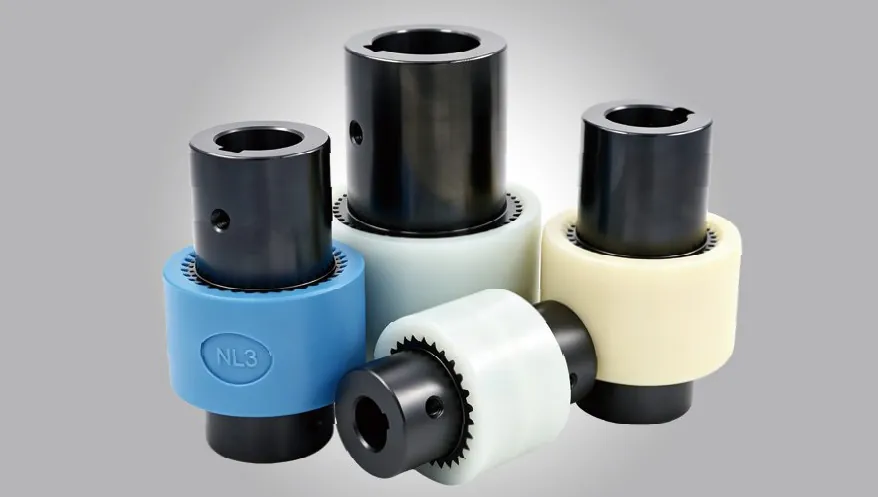

NL nylon-sleeve gear coupling
Steel hubs with a nylon internal-tooth sleeve, NL1 – NL10.
- 40 – 3,150 N·m
- Bores 6 – 100 mm
-
-
TGL
TGL curved-tooth coupling
Curved-tooth hubs with nylon sleeve, TGL14 – TGL125.
- 10 – 2,500 N·m
- Bores 6 – 125 mm
-
TGL-F

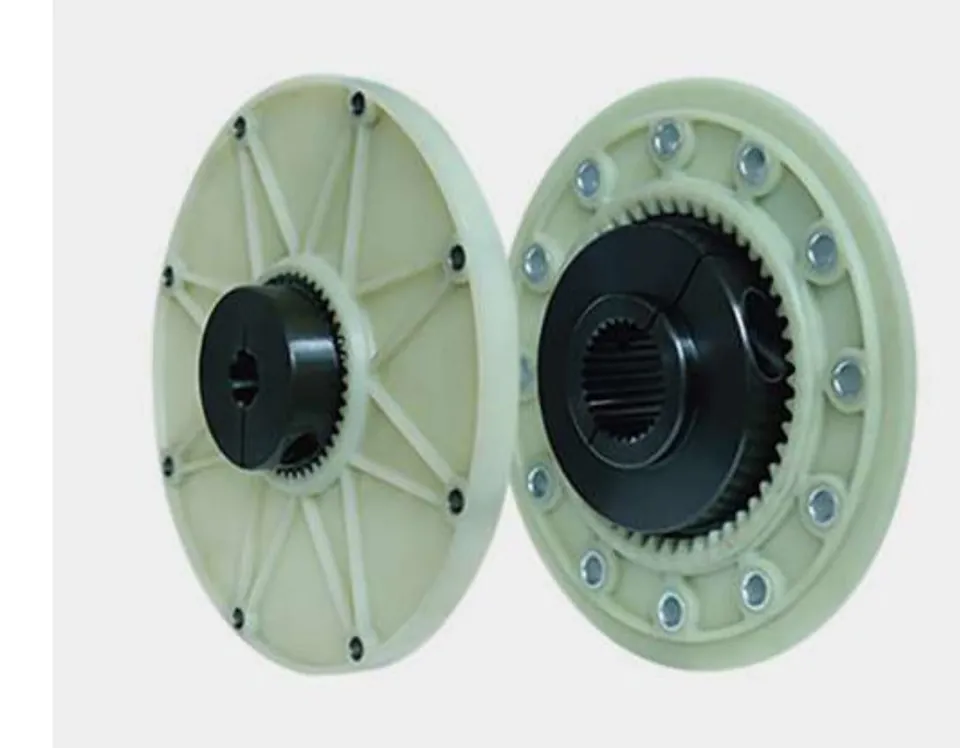

TGL flywheel flange coupling
Nylon flange for SAE 6.5" – 14" flywheels on engine drives.
- Bores 20 – 125 mm
-
TGCL

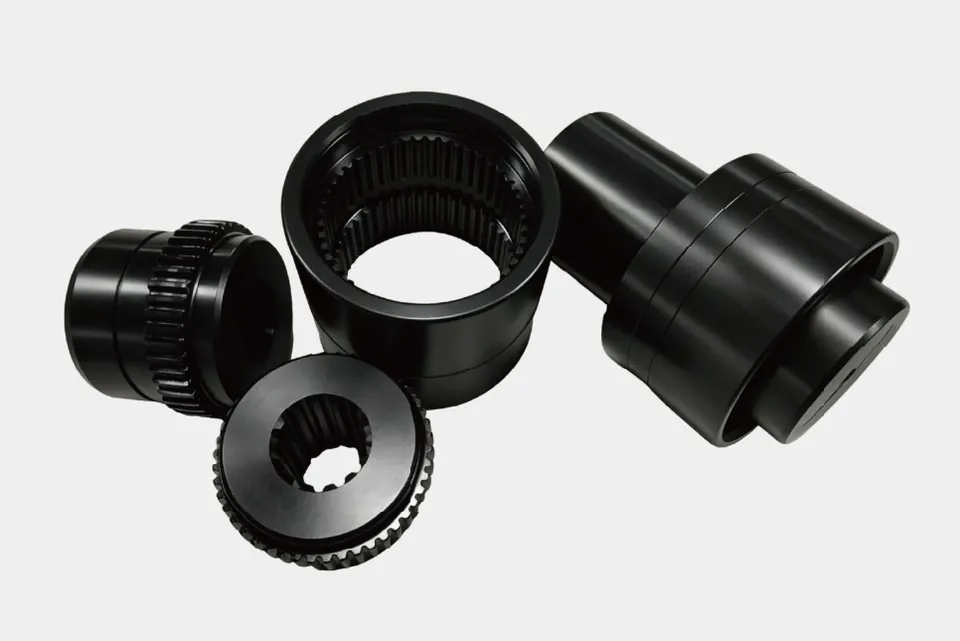

TGCL steel drum gear coupling
All-steel crowned gear sleeve, TGCL85 – TGCL440.
- 550 – 174,000 N·m
- Bores 18 – 265 mm
-
GIICL

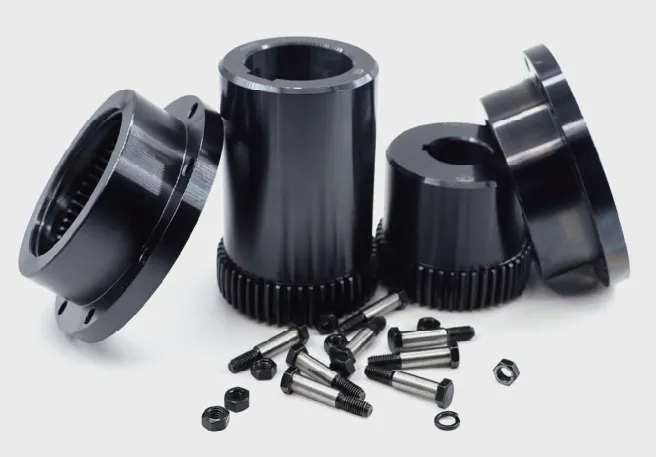

GIICL drum gear coupling
Narrow drum-tooth gear coupling, GIICL1 – GIICL14.
- Bores 16 – 250 mm
Gear Coupling: common questions
Where is Gear Coupling used?
Hydraulic pumps; Electric motors and reducers; Rolling mills; Cranes and hoists; Conveyors; Engine-driven equipment.
What do you need to quote Gear Coupling?
Size or dimensions (or a drawing); Operating pressure and temperature; Medium and operating conditions; Quantity and delivery location.
Who supplies Gear Coupling in Indonesia?
PT Misuba Guna Indonesia supplies Gear Coupling to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
Need a price, sizing or a drawing for Gear Coupling?
Send your operating conditions and quantity. Our sales team will check the details and quote.
