Tyre & Elastic Sleeve Coupling
Highly flexible couplings with a rubber tyre, split urethane element or toothed elastomer sleeve. They take large misalignment and soak up shock and torsional vibration.
Specifications
- Nominal torque
- 10 – 38,400 N·m
- Bore range
- 8 – 229 mm
- Element
- Rubber tyre, urethane or toothed elastomer sleeve
- Hubs
- Bored or taper bush (F type B, F and H)
Description
These couplings use a large, soft flexible element: a rubber tyre (F, UL), a split urethane element that fits radially (Omega), segmented rubber (CFA) or a toothed elastomer sleeve (J/S). They tolerate more misalignment than jaw or gear couplings and protect bearings and gearboxes from shock. Split elements change without moving the machines.
Applications
- Pumps and compressors
- Crushers and mixers
- Fans
- Conveyors
- Generator sets
- Marine drives
Series in this range
6 series · dimension tables on request
-
F
F tyre coupling
Rubber tyre with B, F or H (taper bush) flanges, F040 – F250.
- 25 – 14,680 N·m
- Bores to 190 mm
-
UL

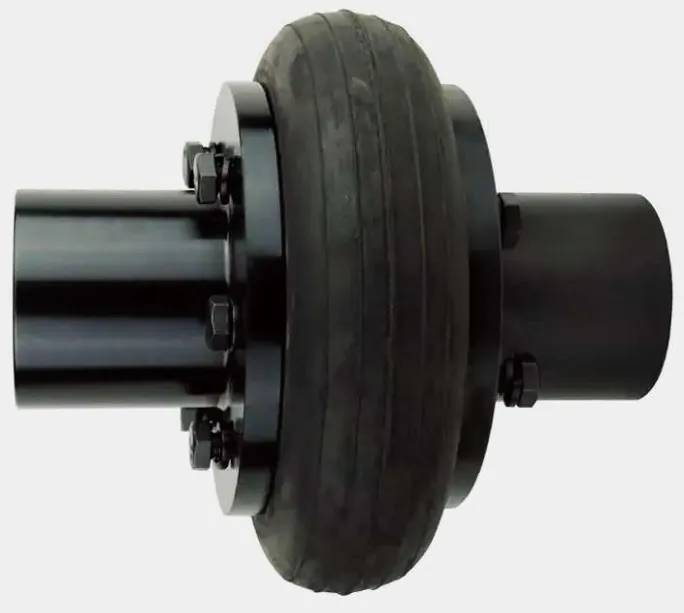

UL tyre coupling
Tyre coupling with clamp-ring rubber tyre, UL1 – UL16.
- 10 – 10,000 N·m
- Bores 11 – 140 mm
-
OMEGA

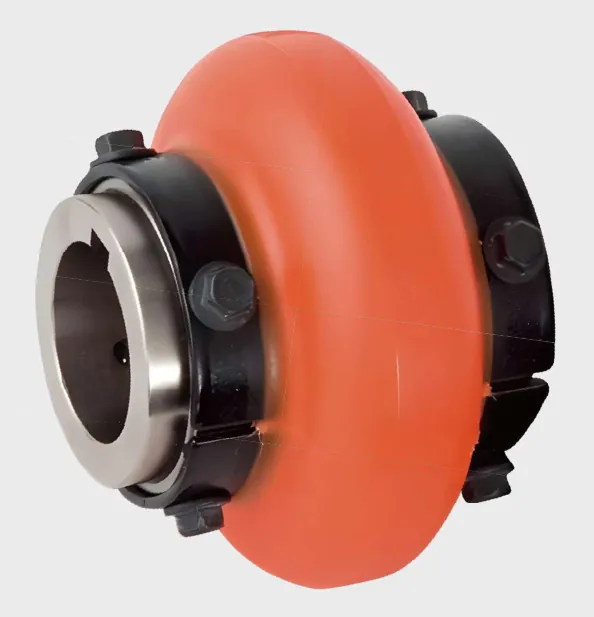

Omega split coupling
Split urethane element bolted to hubs, E2 – E140.
- 22 – 38,400 N·m
- Bores to 229 mm
-
CFA

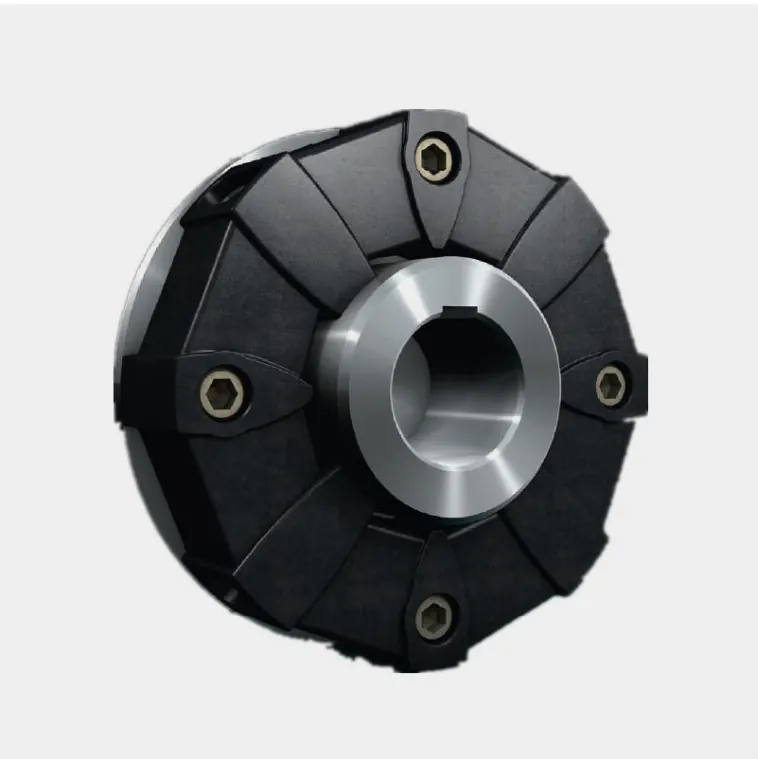

CFA highly elastic coupling
Segmented rubber flange coupling, CFA-01 – CFA-400.
- 10 – 4,000 N·m
- Bores 8 – 130 mm
-
J/S

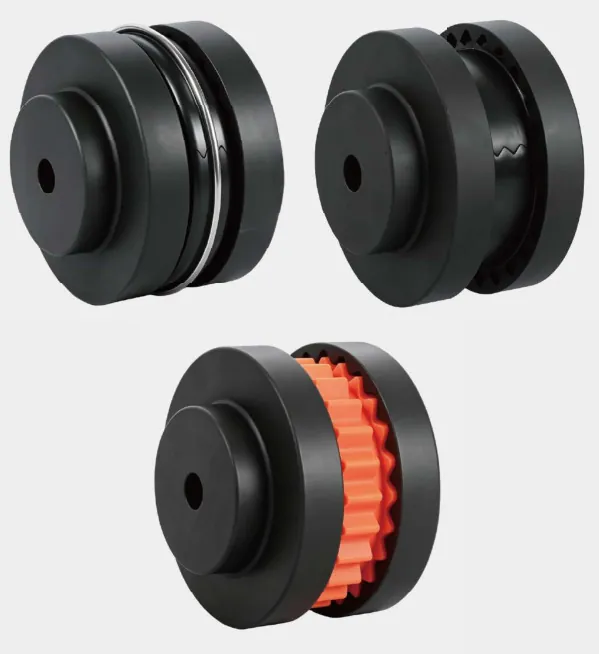

J/S sleeve coupling
Toothed elastomer sleeve, solid (J) or split (S), sizes 3 – 14.
- Bores 9 – 127 mm
-
H/HS

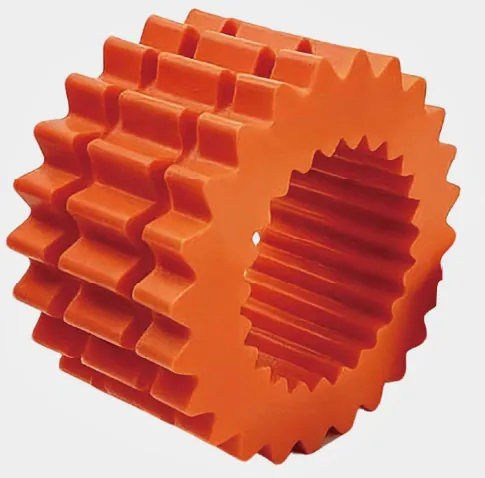

H/HS elastomer sleeve
Replacement solid (H) and split (HS) sleeves, sizes 3 – 14.
Ask for price and size: H/HS elastomer sleeve
Tyre & Elastic Sleeve Coupling: common questions
Where is Tyre & Elastic Sleeve Coupling used?
Pumps and compressors; Crushers and mixers; Fans; Conveyors; Generator sets; Marine drives.
What do you need to quote Tyre & Elastic Sleeve Coupling?
Size or dimensions (or a drawing); Operating pressure and temperature; Medium and operating conditions; Quantity and delivery location.
Who supplies Tyre & Elastic Sleeve Coupling in Indonesia?
PT Misuba Guna Indonesia supplies Tyre & Elastic Sleeve Coupling to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
