Coupling
Pin & Bush Coupling
Flanged couplings that drive through nylon pins or rubber-bushed pins: simple, rugged and repairable on site, for medium to very high torque.
Specifications
- Nominal torque
- 6.3 – 180,000 N·m
- Bore range
- 9 – 340 mm
- Flexible element
- Nylon pins or rubber-bushed pins
- Sizes
- ZL1–ZL15, HL1–HL14, TL1–TL13, FCL90–FCL630
Description

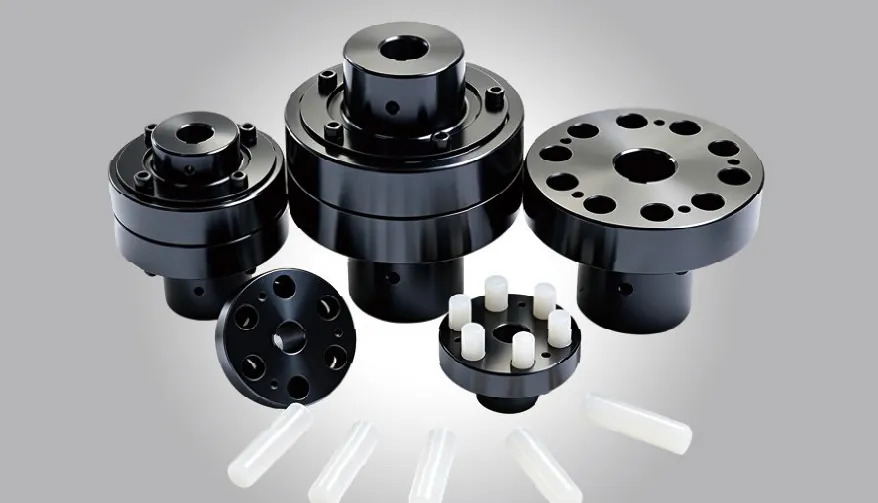

Pin couplings join two flanged hubs with pins that are either solid nylon (HL, ZL) or steel pins sleeved in rubber bushes (TL, FCL). The pins cushion shock and allow small misalignment, and they are cheap to replace when worn. ZL adds a gear ring around the pins for higher torque in heavy industry.
Applications
- Water pumps
- Motor–reducer drives
- Metallurgy and mining
- Power plants
- Cement and chemical plants
- Hoists
Series in this range
4 series · dimension tables on request
-
ZL
ZL pin and gear-ring coupling
Nylon pins inside a gear ring for high torque, ZL1 – ZL15.
- 112 – 160,000 N·m
- Bores 12 – 300 mm
-
HL

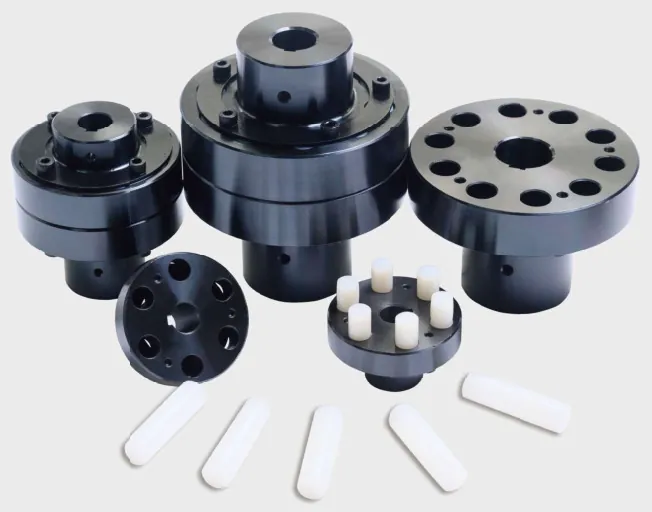

HL nylon pin coupling
Flanged hubs driven through nylon pins, HL1 – HL14.
- 250 – 180,000 N·m
- Bores 12 – 340 mm
-
TL

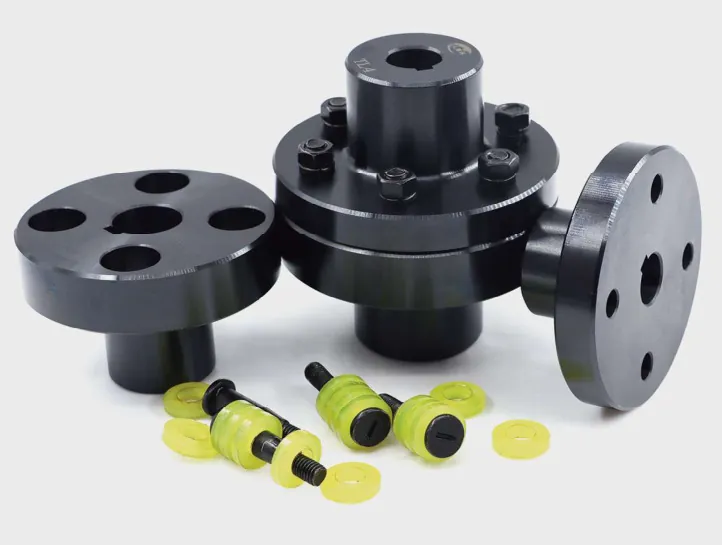

TL bushed-pin coupling
Steel pins with rubber elastic sleeves, TL1 – TL13.
- 6.3 – 16,000 N·m
- Bores 9 – 170 mm
-
FCL

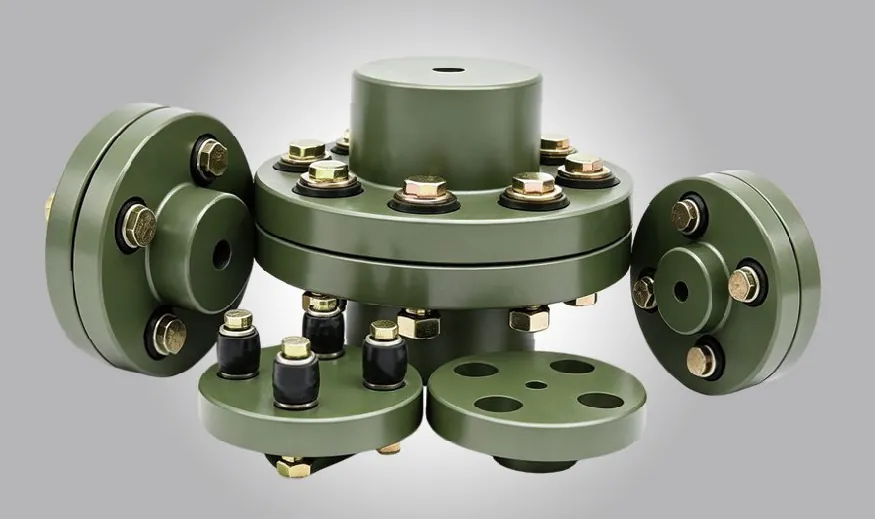

FCL bushed-pin coupling
Flange coupling with rubber-bushed pins, FCL90 – FCL630.
- Flange 90 – 630 mm
Pin & Bush Coupling: common questions
Where is Pin & Bush Coupling used?
Water pumps; Motor–reducer drives; Metallurgy and mining; Power plants; Cement and chemical plants; Hoists.
What do you need to quote Pin & Bush Coupling?
Size or dimensions (or a drawing); Operating pressure and temperature; Medium and operating conditions; Quantity and delivery location.
Who supplies Pin & Bush Coupling in Indonesia?
PT Misuba Guna Indonesia supplies Pin & Bush Coupling to industrial plants across Indonesia from its base in Tangerang, Banten. Send your operating conditions and quantity to sales@misubaguna.com or WhatsApp +62 811-8715-671 for a quotation.
