Coupling
Chain & Grid Coupling
Roller chain couplings for simple, tolerant low-speed drives and serpentine spring grid couplings for heavy torque with shock damping.
Specifications
- Torque range
- 40 – 932,000 N·m
- Bore range
- 13 – 600 mm
- Flexible element
- Duplex roller chain or serpentine spring grid
- Covers
- Optional chain cover; vertical or horizontal split grid covers
Description
A chain coupling wraps a duplex roller chain around two sprocket hubs. It is compact, easy to fit and tolerant of dusty, hot and wet sites. A grid coupling drives through a serpentine steel spring in grooved hubs; the spring flexes under load to cushion shock and torsional vibration, and the T10 type has a horizontally split cover for service in place.
Applications
- Conveyors
- Crushers and mills
- Mixers and agitators
- Steel and cement plants
- Pumps
- Paper machines
Series in this range
4 series · dimension tables on request
-
KC
KC chain coupling
Duplex roller chain coupling with cover, 4012 – 16018.
- Up to 26,400 N·m max
- Bores to 160 mm
-
GL

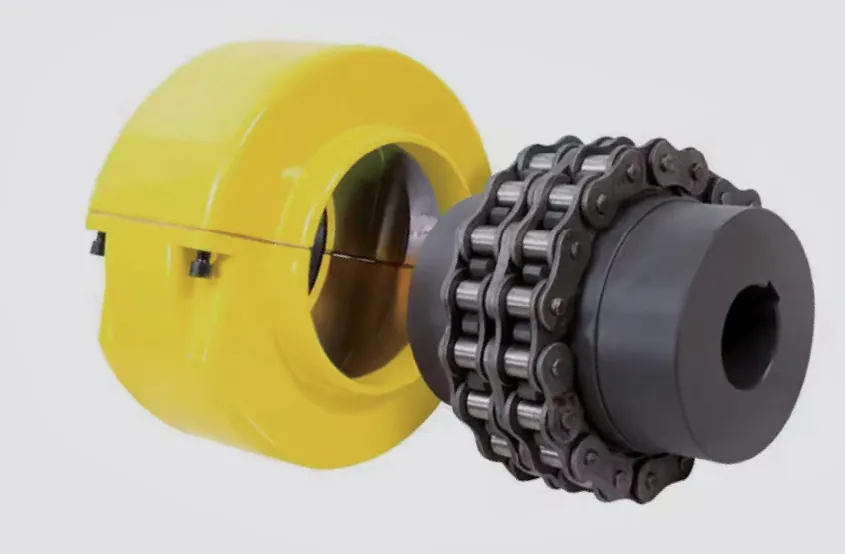

GL chain coupling
Roller chain coupling GL1 – GL15, with or without cover.
- 40 – 25,000 N·m
- Bores 16 – 190 mm
-
JS

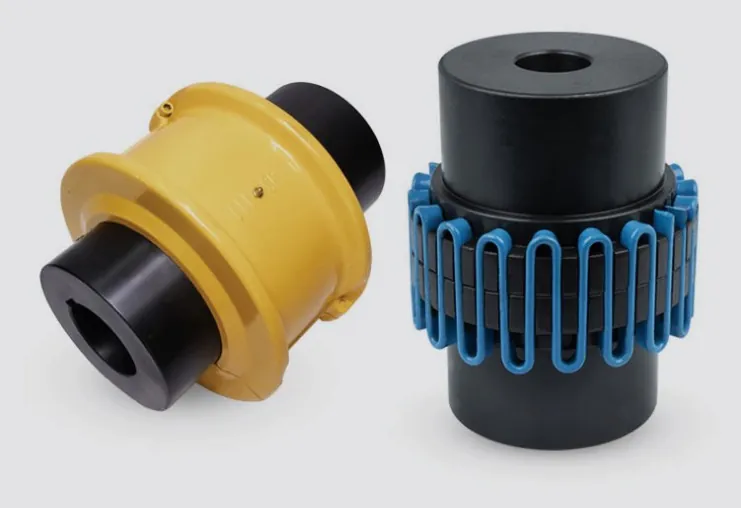

JS grid coupling
Serpentine spring coupling with vertical split cover, JS1 – JS15.
- 45 – 50,000 N·m
- Bores 18 – 240 mm
-
T10

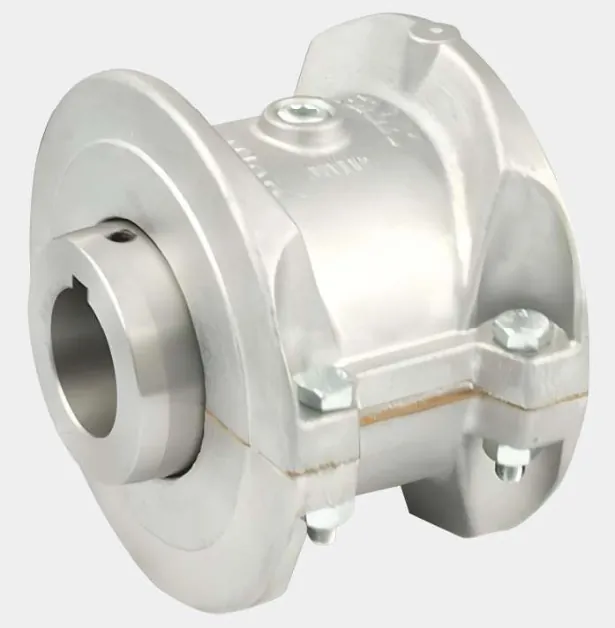

T10 grid coupling
Serpentine spring coupling with horizontal split cover, 1020T – 1260T.
- 52 – 932,000 N·m
- Bores 13 – 600 mm
