Plum Blossom Coupling
Claw couplings that transmit torque through a multi-lobe polyurethane element: ML (GB/T 5272 LM) plum blossom couplings, NM multi-cam couplings and FALK-R housed couplings.
Specifications
- Nominal torque
- 20 – 15,000 N·m
- Bore range
- 7 – 190 mm
- Element
- Polyurethane or rubber, 4 to 12 lobes
- Standard
- ML to GB/T 5272 (LM)
Description
Two claw hubs mesh through a multi-lobe elastic element that is loaded in compression. The element cushions starting shock, damps vibration and takes up axial, radial and angular offset, so the coupling needs no lubrication. ML suits most medium-duty drives; NM gives a compact cam-ring design; FALK-R adds a cover for high torque.
Applications
- Mining and metallurgy drives
- Pumps and fans
- Compressors
- Conveyors
- Lifting and hoisting
- Gear reducers
Series in this range
6 series · dimension tables on request
-
ML

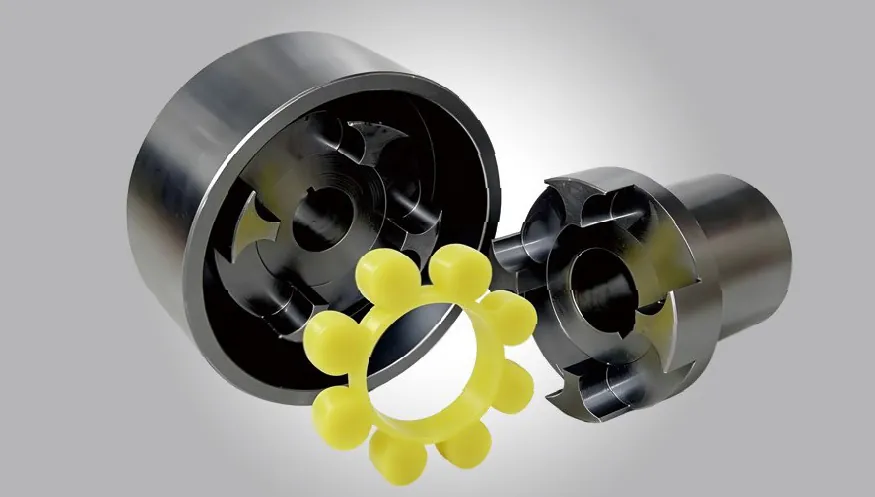

ML plum blossom coupling
GB/T 5272 LM type, ML1 – ML13, also with brake-disc hubs.
- 25 – 12,500 N·m
- Bores 10 – 140 mm
-
MT

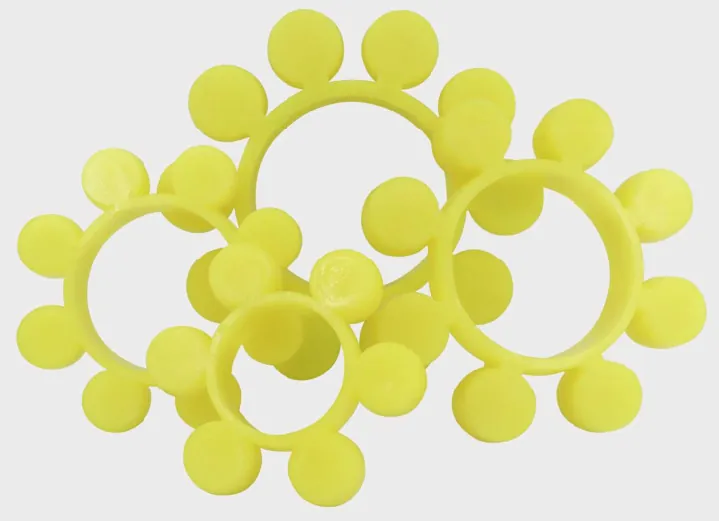

MT plum blossom element
Polyurethane elements MT1 – MT13 for ML couplings, 4 to 12 lobes.
Ask for price and size: MT plum blossom element -
NM

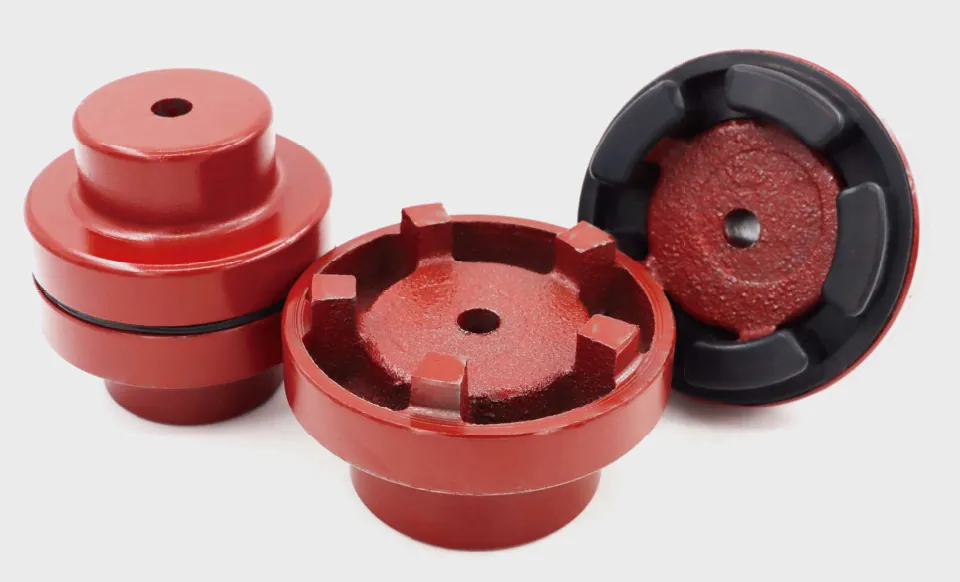

NM claw coupling
Cam-ring claw coupling NM50 – NM214 with an elastic ring insert.
- 20 – 2,400 N·m
- Bores 7 – 95 mm
-
FALK-R

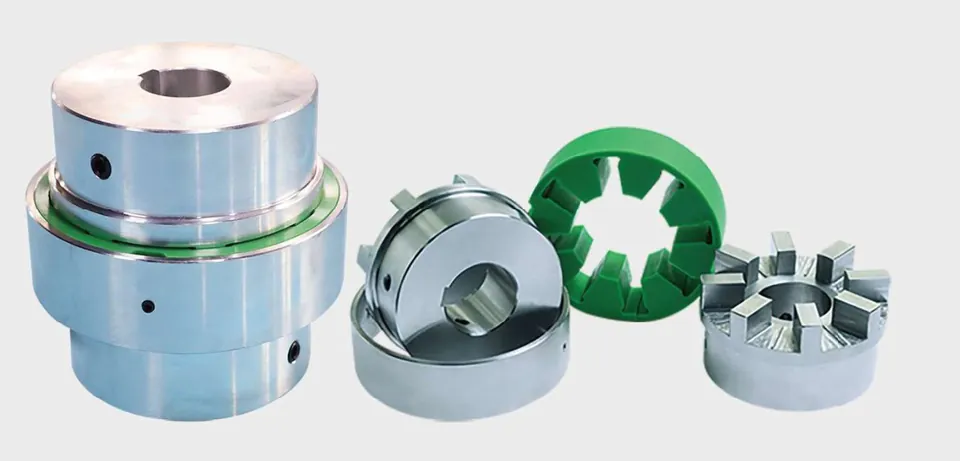

FALK-R claw coupling
Housed claw coupling 3R – 80R with polyurethane element.
- 34 – 15,000 N·m
- Bores to 190 mm
-
FALK-E

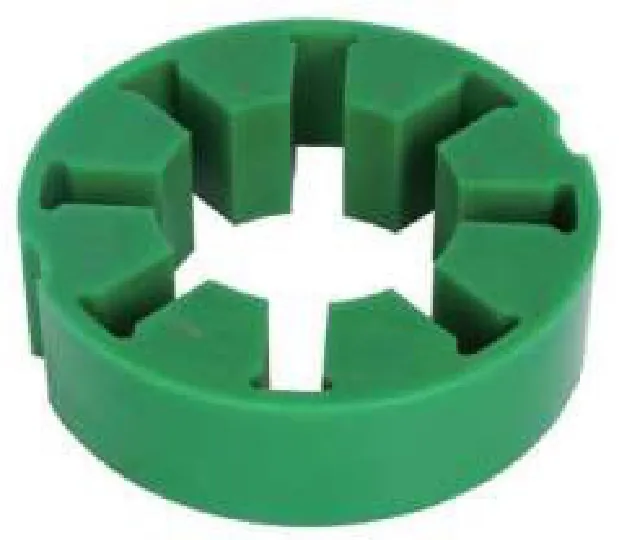

FALK-R elastomer
Replacement polyurethane elements 5R – 80R.
Ask for price and size: FALK-R elastomer -
AR

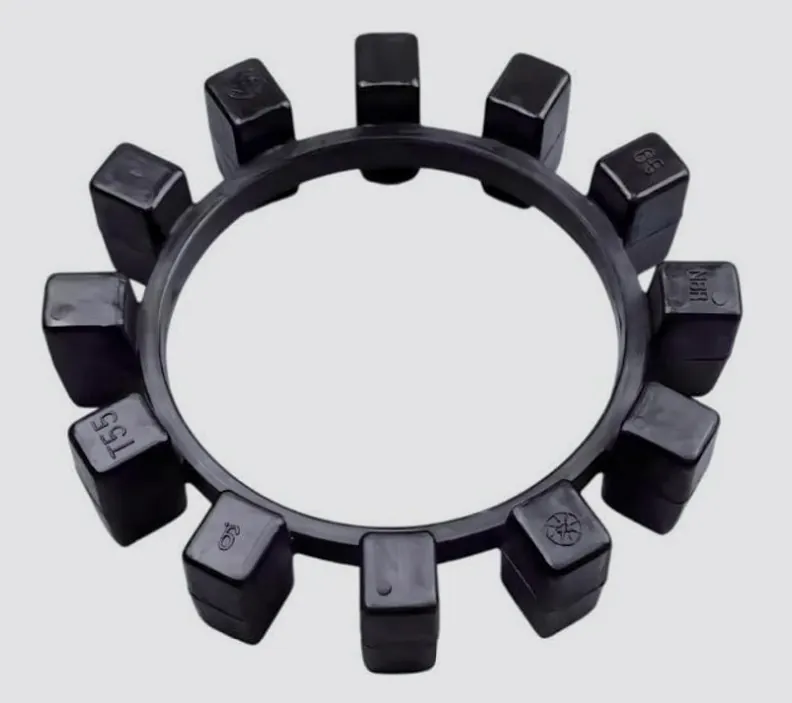

AR elastic ring
Multi-lug elastic rings AR28 – AR90, 8 to 12 lugs.
Ask for price and size: AR elastic ring
